IP Cameras

Hilook 2MP Fixed Bullet Network Camera

Model IPC-B121H-C
  1. All Products
  2. All Products
  3. Hilook 2MP Fixed Bullet Network Camera
End User
Product Code: IPC-B121H-C
HiLook

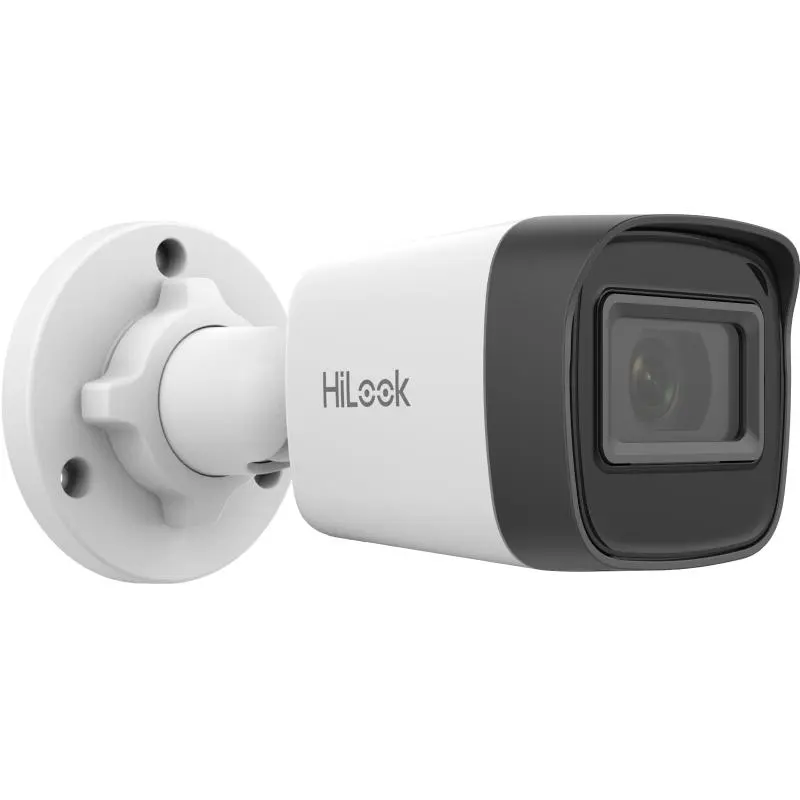

Hilook 2MP Fixed Bullet Network Camera

Hilook 2MP Fixed Bullet Network Camera (IPC-B121H-C) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/471/image_1920?unique=ab53d55
IPC-B121H-C

  • High quality imaging with 2 MP resolution
  • Water and dust resistant (IP67)
  • Easy installation with Power over Ethernet (PoE) technology

This combination does not exist.

  • IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model IPC-B121H-C

Technical Specifications

ModelIPC-B121H-C
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112° / 4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens MountM12
Iris TypeFixed
ApertureF2.2
Pixel Density
DORI2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m / 4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) / 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) / 60 Hz: 30 fps (640 × 480, 640 × 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264, / Sub-stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Network
Simultaneous Live ViewUp to 6 channels
APIISAPI,SDK
User/HostUp to 32 users / 3 user levels: administrator, operator, and user
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic EventMotion detection, exception
LinkageNotify surveillance center
General
Power12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, / PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialPlastic
Dimension138.8 mm × 60.9 mm × 57.9 mm (5.46" × 2.4" × 2.3")
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Approval
ProtectionIP67: IEC 60529-2013
