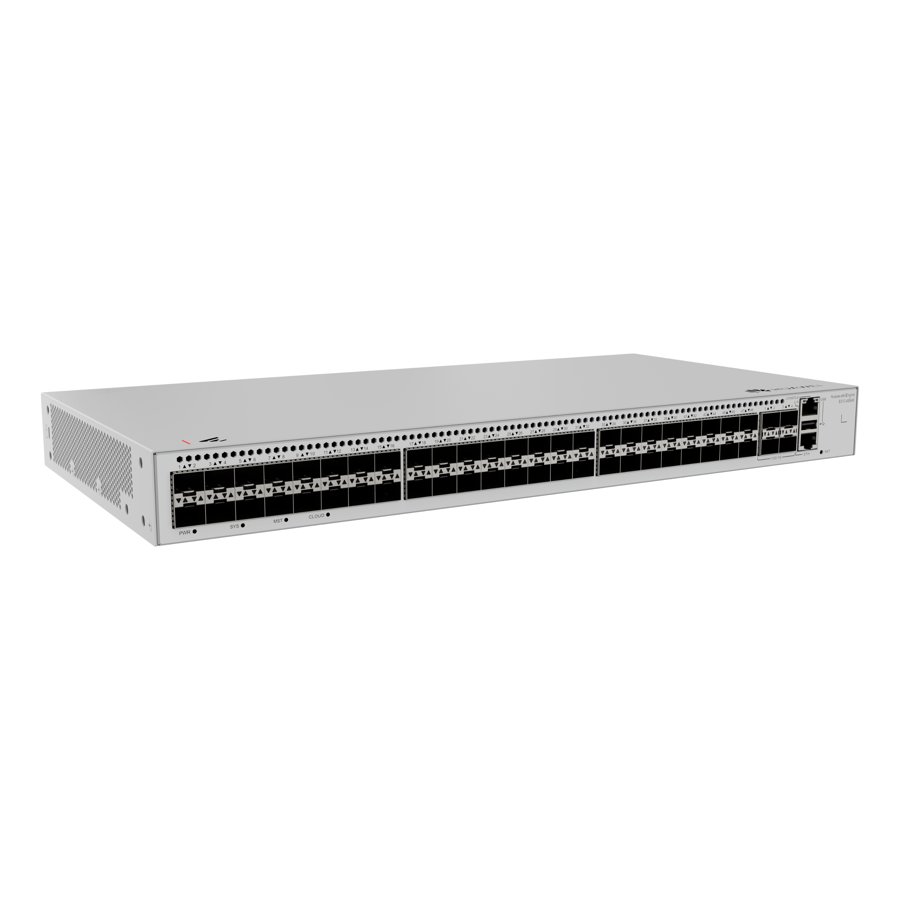

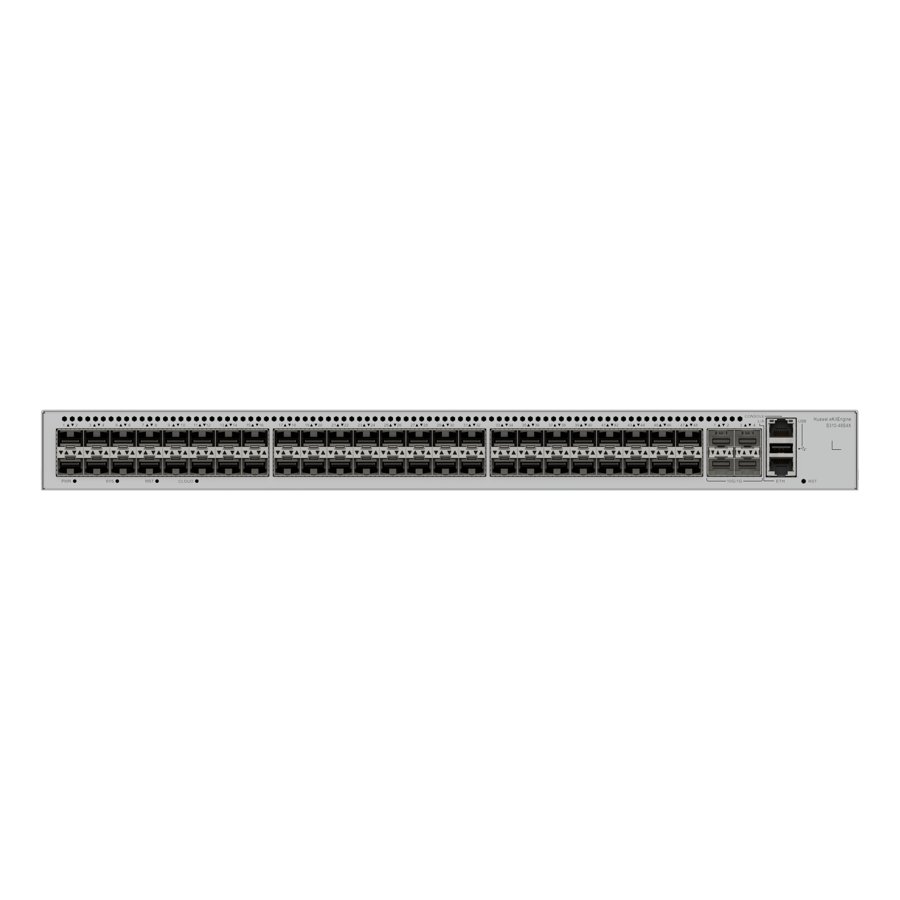

Huawei eKitEngine S310-48S4X Managed Switch, 48*GE SFP, 4*10GE SFP+, built-in AC power
Huawei eKitEngine S310-48S4X Managed Switch, 48*GE SFP, 4*10GE SFP+, built-in AC power is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- S310-48S4X (48*GE SFP ports, 4*10GE SFP+ ports, built-in AC power)
General
| Model | S310-48S4X |
|---|
Key Features
- S310-48S4X (48*GE SFP ports, 4*10GE SFP+ ports, built-in AC power)
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S310-48S4X |
|---|---|
| Part Number | 98012564 |
| Switching capacity | 176 Gbit/s |
| Packet forwarding rate | 131 Mpps |
| GE SFP | 48 (1G/100M) |
| 10G SFP+ | 4 (10G/1G) |
| iStack | Up to 4 switches of the same series in a stack |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 32 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 2.96 kg (6.53 lb) |
| Weight with packaging [kg(lb)] | 3.74 kg (8.25 lb) |
| Typical power consumption [W] | 65.6 |
| Maximum power consumption [W] | 84.1 |
| Number of fans modules | 2 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
