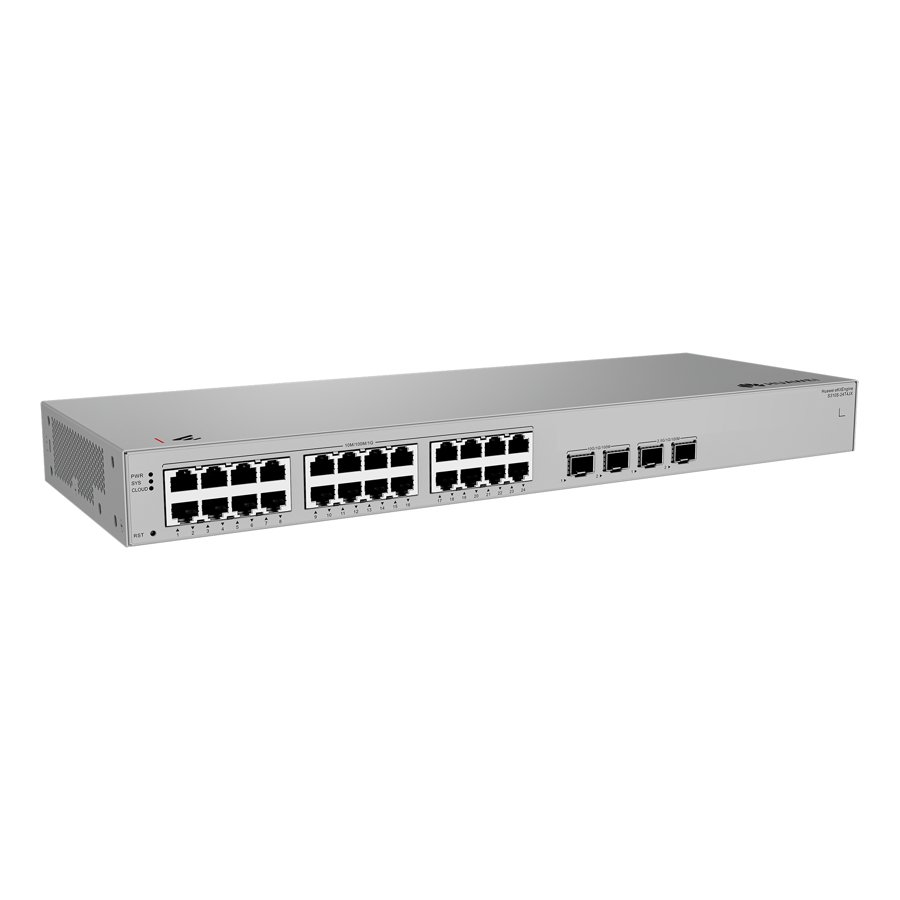

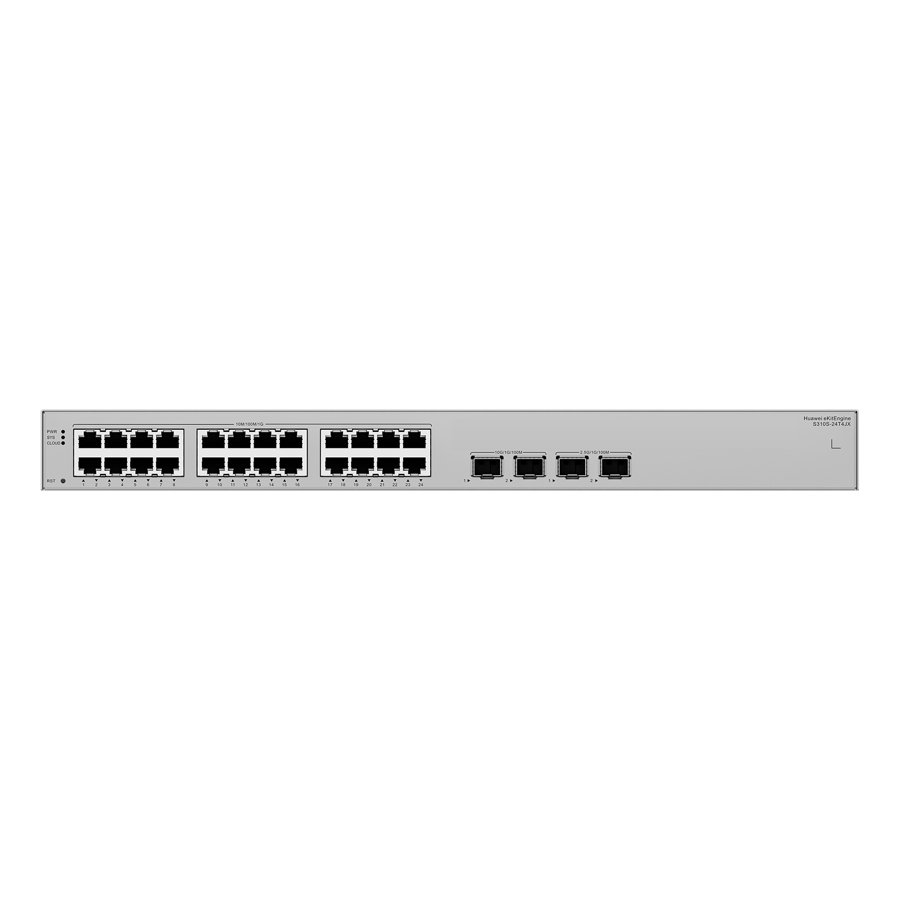

Huawei eKitEngine S310S-24T4JX Managed Switch, 24*GE, 2*10GE SFP+, 2*2.5GE SFP, built-in AC power, Fanless
Huawei eKitEngine S310S-24T4JX Managed Switch, 24*GE, 2*10GE SFP+, 2*2.5GE SFP, built-in AC power, Fanless is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.
- S310S-24T4JX (24*10/100/1000BASE-T ports, 2*10GE SFP+ ports, 2*2.5GE SFP ports, built-in AC power, Fanless)
General
| Model | S310S-24T4JX |
|---|
Key Features
- S310S-24T4JX (24*10/100/1000BASE-T ports, 2*10GE SFP+ ports, 2*2.5GE SFP ports, built-in AC power, Fanless)
Best Fit Applications
Access and aggregation layers for offices, CCTV projects, hotels and campuses.
Technical Specifications
| Model | S310S-24T4JX |
|---|---|
| Part Number | 98012508-001 |
| Switching capacity | 98 Gbit/s |
| Packet forwarding rate | 73 Mpps |
| GE RJ45 | 24 (1G/100M/10M) |
| 2.5G SFP | 2 (2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G/100M) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 11.14 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x… |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Installation type | Rack mounting, Desk mounting, Wall mounting |
| Weight without packaging [kg(lb)] | 1.97 (4.34) |
| Weight with packaging [kg(lb)] | 2.76 kg (6.08 lb) |
| Typical power consumption [W] | 21.32 |
| Maximum power consumption [W] | 21.9 |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Power supply surge protection [kV] | ±4 kV in differential mode and ±4 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |
