Manged Switchs

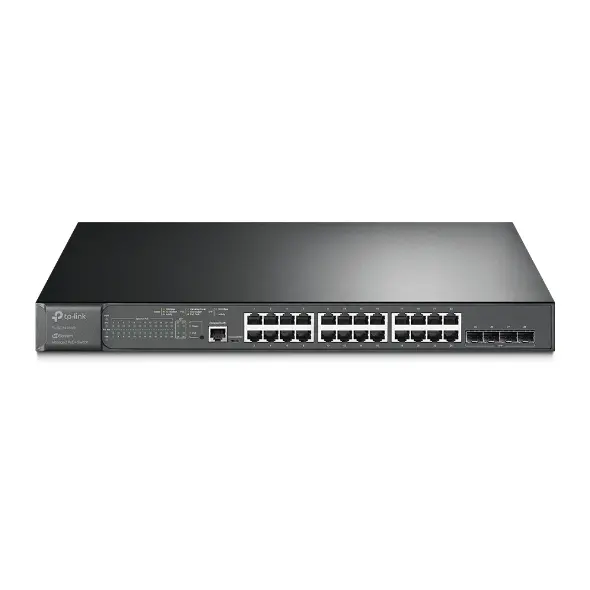

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

Model TL-SG3428MP
  1. All Products
  2. Manged Switchs
  3. TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
End User
Product Code: TL-SG3428MP
TP-Link

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1121/image_1920?unique=00d79a2

سويتش مُدار من TP-Link Omada / JetStream بيدعم VLAN و QoS ومميزات حماية وإدارة مركزية لشبكات الشركات.

  • الواجهات: 24 منفذ 10/100/1000Mbps RJ45 / 4 منفذ جيجابت SFP / 1 منفذ RJ45 Console / 1 منفذ Console Micro-USB
  • مصدر الطاقة: 100-240 V AC~50/60 Hz
  • منافذ PoE (RJ45): المعيار: متوافق مع 802.3at/af / منافذ PoE: 24 منفذ، لحد 30 W لكل منفذ / إجمالي قدرة PoE: 384 W
  • سعة التحويل: 56 Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SG3428MP

Key Features

  • Interface: 24× 10/100/1000Mbps RJ45 Ports / 4× Gigabit SFP Slots / 1× RJ45 Console Port / 1× Micro-USB Console Port
  • Power Supply: 100-240 V AC~50/60 Hz
  • PoE Ports (RJ45): Standard: 802.3at/af compliant / PoE+ Ports: 24 Ports, up to 30 W per port / Power Budget: 384 W*
  • Switching Capacity: 56 Gbps

Best Fit Applications

Company networks, server rooms, CCTV systems, hotels and schools.

Technical Specifications

ModelTL-SG3428MP
Hardware Features
Interface24× 10/100/1000Mbps RJ45 Ports / 4× Gigabit SFP Slots / 1× RJ45 Console Port / 1× Micro-USB Console Port
Fan Quantity2
Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant / PoE+ Ports: 24 Ports, up to 30 W per port / Power Budget: 384 W*
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
MountingRack Mountable
Max. Power ConsumptionV1: 463.8 W (110 V/60 Hz) (with 384 W PD connected) / 31.0 W (110 V/60 Hz) (no PD connected) / V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected) / 34.4 W (110 V/60 Hz) (no PD connected) / V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected) / V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected) / V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat DissipationV1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected) / 105.78 BTU/h (110 V/60 Hz) (no PD connected) / V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected) / 117.38 BTU/hr (110 V/60 Hz) (no PD connected) / V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected) / V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected) / V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
Performance
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
Switching Capacity56 Gbps
Packet Forwarding Rate41.66 Mpps
MAC Address TableV1: 8K / V2 and above: 16K
Software Features
Quality of Service8 priority queues / 802.1p CoS/DSCP priority / Queue scheduling / - SP (Strict Priority) / - WRR (Weighted Round Robin) / - SP+WRR / Bandwidth Control / - Port/Flow based Rating Limiting / Smoother Performance / Action for Flows
L3 Features32 IPv4/IPv6 Interfaces (v1) / 128 IPv4/IPv6 Interfaces (v2~v6) / Static Routing / - 48 static routes / Static ARP / - 128 static entries / 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0) / Proxy ARP / Gratuitous ARP / DHCP Server / DHCP Relay
L2 and L2+ FeaturesLink Aggregation / - Static link aggregation / - 802.3ad LACP / - Up to 8 aggregation groups and up to 8 ports per group / Spanning Tree Protocol / - 802.1d STP / - 802.1w RSTP / - 802.1s MSTP / Loopback Detection / - Port-based
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups / IGMP Snooping / - IGMP v1/v2/v3 Snooping / - Fast Leave / - IGMP Snooping Querier / - IGMP Authentication / IGMP Authentication / MVR / MLD Snooping / - MLD v1/v2 Snooping
Advanced FeaturesAutomatic Device Discovery / Batch Configuration / Batch Firmware Upgrading / Intelligent Network Monitoring / Abnormal Event Warnings / Unified Configuration / Reboot Schedule
VLANVLAN Group / - Max 4K VLAN Groups / 802.1Q Tagged VLAN / MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0) / Protocol VLAN: Protocol Template 16, Protocol / VLAN 16 / Private VLAN / GVRP / VLAN VPN (QinQ) / - Port-Based QinQ
Access Control ListTime-based ACL / MAC ACL / - Source MAC / - Destination MAC / - VLAN ID / - User Priority / - Ether Type / IP ACL / -Source IP / - Destination IP
SecurityIP-MAC-Port Binding / - DHCP Snooping / - ARP Inspection / - IPv4 Source Guard / IPv6-MAC-Port Binding / - DHCPv6 Snooping / - ND Detection / - IPv6 Source Guard / DoS Defend / Static/Dynamic Port Security
IPv6IPv6 Dual IPv4/IPv6 / Multicast Listener Discovery (MLD) Snooping / IPv6 ACL / IPv6 Interface / Static IPv6 Routing / IPv6 neighbor discovery (ND) / Internet Control Message Protocol (ICMP) version 6 / TCPv6/UDPv6 / IPv6 applications / - DHCPv6 Client
Management Features
Management FeaturesWeb-based GUI / SNMPv1/v2c/v3 / - Trap/Inform / - RMON (1, 2, 3, 9 groups) / SDM Template / DHCP/BOOTP Client / 802.1ab LLDP/LLDP-MED / DHCP AutoInstall / Dual Image, Dual Configuration / CPU Monitoring

No PDF files or external links are attached to this product yet.
