Manged Switchs

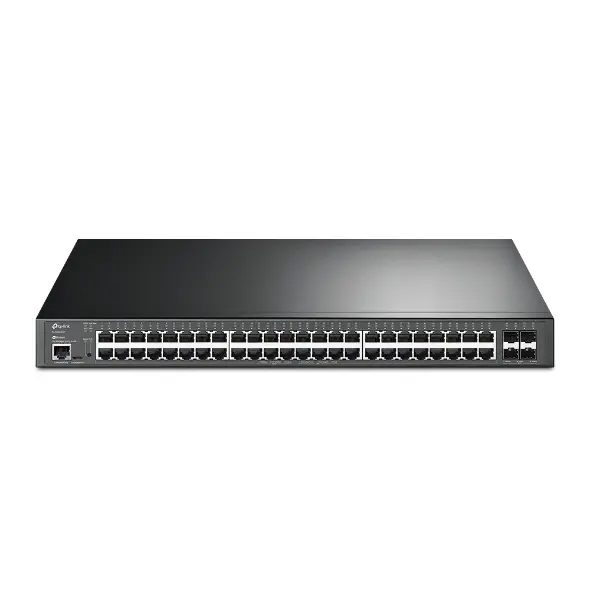

TP-Link TL-SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

Model TL-SG3452XP
  1. All Products
  2. Manged Switchs
  3. TP-Link TL-SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+
End User
Product Code: TL-SG3452XP
TP-Link

TP-Link TL-SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

TP-Link TL-SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1117/image_1920?unique=00d79a2

سويتش مُدار من TP-Link Omada / JetStream بيدعم VLAN و QoS ومميزات حماية وإدارة مركزية لشبكات الشركات.

  • الواجهات: 48 منفذ 10/100/1000 Mbps RJ45 PoE+ / 4 منفذ 10G SFP+ / 1 منفذ RJ45 Console / 1 منفذ Console Micro-USB
  • مصدر الطاقة: 100-240 V AC~50/60 Hz
  • منافذ PoE (RJ45): المعيار: متوافق مع 802.3at/af / منافذ PoE: 48 منفذ، لحد 30 W لكل منفذ / إجمالي قدرة PoE: 500 W
  • سعة التحويل: 176 Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SG3452XP

Key Features

  • Interface: 48× 10/100/1000 Mbps RJ45 PoE+ Ports / 4× 10G SFP+ Slots / 1× RJ45 Console Port / 1× Micro-USB Console Port
  • Power Supply: 100-240 V AC~50/60 Hz
  • PoE Ports (RJ45): Standard: 802.3at/af compliant / PoE+ Ports: 48 Ports, up to 30 W per port / Power Budget: 500 W*
  • Switching Capacity: 176 Gbps

Best Fit Applications

Company networks, server rooms, CCTV systems, hotels and schools.

Technical Specifications

ModelTL-SG3452XP
Hardware Features
Interface48× 10/100/1000 Mbps RJ45 PoE+ Ports / 4× 10G SFP+ Slots / 1× RJ45 Console Port / 1× Micro-USB Console Port
Fan Quantity3
Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant / PoE+ Ports: 48 Ports, up to 30 W per port / Power Budget: 500 W*
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
MountingRack Mountable
Max. Power Consumption49.19 W (110V/60Hz) ( no PD device connected) / 635.7 W (110V/60Hz) ( with 500 W PD device connected)
Max Heat Dissipation167.85 BTU/hr (110 V/60 Hz) (no PD connected) / 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity176 Gbps
Packet Forwarding Rate130.9 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues / 802.1p CoS/DSCP priority / Queue scheduling / - SP (Strict Priority) / - WRR (Weighted Round Robin) / - SP+WRR / Bandwidth Control / - Port/Flow based Rating Limiting / Smoother Performance / Action for Flows
L3 Features128 IPv4/IPv6 Interfaces / Static Routing / - 48 static routes / Static ARP / - 128 Static Entries / Proxy ARP / Gratuitous ARP / DHCP Server / DHCP Relay / - DHCP Interface Relay
L2 and L2+ FeaturesLink Aggregation / - static link aggregation / - 802.3ad LACP / - Up to 8 aggregation groups, containing 8 ports per group / Spanning Tree Protocol / - 802.1d STP / - 802.1w RSTP / - 802.1s MSTP / Loopback Detection / - Port based
L2 MulticastIGMP Snooping / - IGMP v1/v2/v3 Snooping / - Fast Leave / - IGMP Snooping Querier / - IGMP Authentication / IGMP Authentication / MLD Snooping / - MLD v1/v2 Snooping / - MLD Snooping Querier / - Static Group Config
Advanced FeaturesAutomatic Device Discovery / Batch Configuration / Batch Firmware Upgrading / Intelligent Network Monitoring / Abnormal Event Warnings / Unified Configuration / Reboot Schedule
VLANVLAN Group / - Max 4K VLAN Groups / 802.1Q Tagged VLAN / MAC VLAN: 30 Entries / Protocol VLAN: Protocol Template 16, Protocol VLAN 16 / Private VLAN / GVRP / VLAN VPN (QinQ) / - Port-Based QinQ / - Selective QinQ
Access Control ListTime-based ACL / MAC ACL / - Source MAC / - Destination MAC / - VLAN ID / - User Priority / - Ether Type / IP ACL / -Source IP / - Destination IP
SecurityIP-MAC-Port Binding / - 512 Entries / - DHCP Snooping / - ARP Inspection / - IPv4 Source Guard: 100 Entries / IPv6-MAC-Port Binding / - DHCPv6 Snooping / - ND Detection / - IPv6 Source Guard: 100 Entries / DoS Defend
IPv6IPv6 Dual IPv4/IPv6 / Multicast Listener Discovery (MLD) Snooping / IPv6 ACL / IPv6 Interface / Static IPv6 Routing / IPv6 neighbor discovery (ND) / Internet Control Message Protocol (ICMP) version 6 / TCPv6/UDPv6 / IPv6 applications / - DHCPv6 Client
Management Features
Management FeaturesWeb-based GUI / SNMP v1/v2c/v3 / - Trap/Inform / - RMON (1,2,3,9 groups) / SDM Template / DHCP/BOOTP Client / 802.1ab LLDP/LLDP-MED / DHCP AutoInstall / Dual Image, Dual Configuration / CPU Monitoring
