Product Code:
Tapo C230

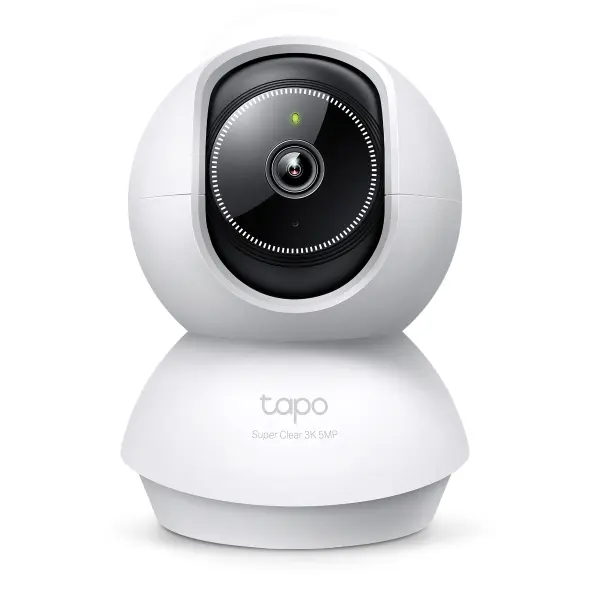

TP-Link Tapo C230 Pan/Tilt Home Security Wi-Fi Camera
TP-Link Tapo C230 Pan/Tilt Home Security Wi-Fi Camera is a Wi-Fi Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
كاميرا مراقبة واي فاي من Tapo بمشاهدة مباشرة وتنبيهات على تطبيق الموبايل ورؤية ليلية وصوت في الاتجاهين وتسجيل على كارت أو كلاود.
- الرؤية الليلية: 850 nm IR LED (40 ft / 12 m)
- أقصى دقة: 3K 5MP (2880×1620 px)
- التخزين المحلي: مكان كارت MicroSD في الكاميرا (حتى 512 GB)
- الاكتشاف بالذكاء الاصطناعي: اكتشاف الحركة / اكتشاف الأشخاص / اكتشاف عبور الخط / اكتشاف العبث / اكتشاف بكاء الأطفال / اكتشاف العربيات / اكتشا
General
| Model | Tapo C230 |
|---|
Key Features
- Night Vision: 850 nm IR LED (40 ft / 12 m)
- Maximum Resolution: 3K 5MP (2880×1620 px)
- Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
- AI Detection: Motion Detection / Person Detection / Line-Crossing Detection / Tamper Detection / BabyCry Detection / Vehicle Detection / Pet
Best Fit Applications
Homes, shops, offices, kids and elderly care.
Technical Specifications
| Model | Tapo C230 |
| Camera | |
| Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4 mm / Aperture: F2.0 / Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m) |
| Interface & Button | 1× RESET Button / 1× MicroSD Card Slot (Up to 512GB) |
| Pan/Tilt Range | Pan Mechanical Range: 340° (360° Pan Coverage) / Tilt Mechanical Range: 69° |
| Video & Audio | |
| Maximum Resolution | 3K 5MP (2880×1620 px) |
| Frame Rate | 15/20/25/30 fps (Default 15fps) |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR / BLC |
| Audio Input & Output | Built-in Microphone and Speaker |
| Siren Volume | 99dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Detection and Notifications | |
| AI Detection | Motion Detection / Person Detection / Line-Crossing Detection / Tamper Detection / BabyCry Detection / Vehicle Detection / Pet Detection / Meow Detection / Bark Detection / Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| RTSP | Yes |
| ONVIF | Yes |
| Security | |
| Security | On-Device Machine Learning / 128-bit AES Encryption with SSL/TLS / WPA/WPA2-PSK |
| Power | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9V, 0.6 A (DC Power) |
| General | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Mounting Options | Tabletop / Ceiling-Mounted |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions ( W x D x H ) | 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
