Product Code:
TL-SG1005LP

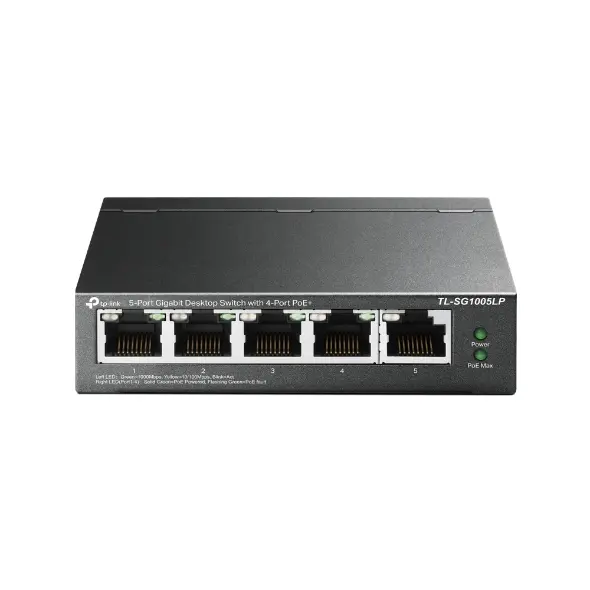

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
سويتش شبكة من TP-Link بيشتغل على طول من غير إعدادات، بيزود منافذ شبكة للكمبيوترات والكاميرات والأكسس بوينت وباقي الأجهزة.
- الواجهات: 5 منفذ 10/100/1000Mbps RJ45 / AUTO Negotiation / AUTO MDI/MDIX
- مصدر طاقة خارجي: محول طاقة خارجي (الخرج: 53.5 VDC / 0.81 A)
- منافذ PoE (RJ45): المعيار: متوافق مع 802.3 af/at / منافذ PoE: المنافذ 1–4 / مصدر الطاقة: 40 W
- سعة التحويل: 10 Gbps
General
| Model | TL-SG1005LP |
|---|
Key Features
- Interface: 5× 10/100/1000Mbps RJ45 Ports / AUTO Negotiation / AUTO MDI/MDIX
- External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
- PoE Ports (RJ45): Standard: 802.3 af/at compliant / PoE Ports: Ports 1–4 / Power Supply: 40 W
- Switching Capacity: 10 Gbps
Best Fit Applications
Homes, offices, shops and CCTV systems.
Technical Specifications
| Model | TL-SG1005LP |
| Hardware Features | |
| Interface | 5× 10/100/1000Mbps RJ45 Ports / AUTO Negotiation / AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5, 5e cable (maximum 100m) / 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant / PoE Ports: Ports 1–4 / Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | V3: 16 KB / V4: 9 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Max. Power Consumption | V3: / 4.12 W (220/50 Hz. no PD connected) / 47.5 W (220/50 Hz. with 40 W PD connected) / V4: / 48.04 W (220/50 Hz. with 40 W PD connected) |
| Max Heat Dissipation | 14.05 BTU/h (no PD connected) / 161.98 BTU/h (with 40 W PD connected) |
| Software Features | |
| Advanced Features | Extend Mode: Ports 1–2 / PoE Auto Recovery: Ports 1-4 / Compatible With IEEE 802.3af/at Compliant PDs / IEEE 802.3x Flow Control / 802.1p/DSCP QoS / IGMP Snooping |
| Transmission Method | Store-And-Forward |
