Switches

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Model TL-SF1006P
  1. All Products
  2. All Products
  3. TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
End User
Product Code: TL-SF1006P
TP-Link

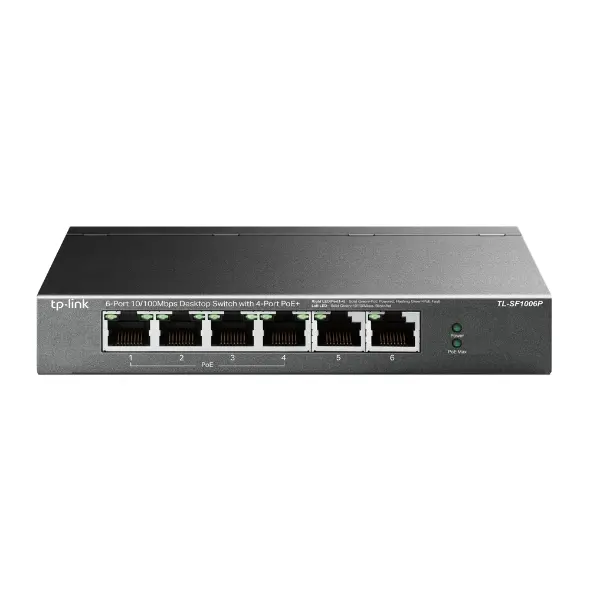

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/223/image_1920?unique=00d79a2

سويتش شبكة من TP-Link بيشتغل على طول من غير إعدادات، بيزود منافذ شبكة للكمبيوترات والكاميرات والأكسس بوينت وباقي الأجهزة.

  • الواجهات: 6 منفذ 10/100 Mbps RJ45 (المنافذ 1–4 تدعم 802.3af/at PoE+) / AUTO Negotiation / AUTO MDI/MDIX
  • مصدر طاقة خارجي: محول طاقة خارجي (الخرج: 53.5 V DC / 1.31 A)
  • منافذ PoE (RJ45): المعيار: متوافق مع 802.3 af/at / منافذ PoE: المنافذ 1–4 / مصدر الطاقة: 67 W
  • سعة التحويل: 1.2 Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SF1006P

Key Features

  • Interface: 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) / AUTO Negotiation / AUTO MDI/MDIX
  • External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant / PoE Ports: Ports 1–4 / Power Supply: 67 W
  • Switching Capacity: 1.2 Gbps

Best Fit Applications

Homes, offices, shops and CCTV systems.

Technical Specifications

ModelTL-SF1006P
Hardware Features
Interface6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) / AUTO Negotiation / AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
Fan QuantityFanless
Physical Security LockYes
External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate0.8928 Mpps
PoE Ports (RJ45)Standard: 802.3 af/at compliant / PoE Ports: Ports 1–4 / Power Supply: 67 W
Mac Address Table2K
Jumbo Frame2 KB
Switching Capacity1.2 Gbps
Dimensions ( W x D x H )6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max. Power Consumption2.52 W (220 V / 50 Hz, no PD connected) / 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation8.59 BTU/h(no PD connected) / 257.11 BTU/h(with 67 W PD connected)
Software Features
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant PDs / Extend Mode Button (Ports 1–4) / Priority Mode Button (Ports 1–2) / PoE Auto Recovery (Ports 1-4) / IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Transmission MethodStore-And-Forward
