Smart Manged Switchs

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Model TL-SG1008MP
  1. All Products
  2. Smart Manged Switchs
  3. TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
End User
Product Code: TL-SG1008MP
TP-Link

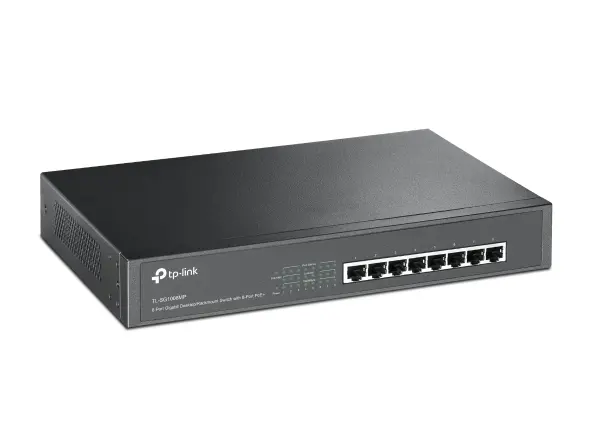

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1751/image_1920?unique=00d79a2

سويتش شبكة من TP-Link بيشتغل على طول من غير إعدادات، بيزود منافذ شبكة للكمبيوترات والكاميرات والأكسس بوينت وباقي الأجهزة.

  • الواجهات: 8 منفذ 10/100/1000Mbps RJ45 / AUTO Negotiation/AUTO MDI/MDIX
  • مصدر الطاقة: 100-240VAC, 50/60Hz
  • منافذ PoE (RJ45): المعيار: متوافق مع 802.3af/at / منافذ PoE: 8 منفذ / مصدر الطاقة: 153W
  • سعة التحويل: 16Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SG1008MP

Key Features

  • Interface: 8 10/100/1000Mbps RJ45 Ports / AUTO Negotiation/AUTO MDI/MDIX
  • Power Supply: 100-240VAC, 50/60Hz
  • PoE Ports (RJ45): Standard: 802.3af/at compliant / PoE+ Ports: 8 Ports / Power Supply: 153W
  • Switching Capacity: 16Gbps

Best Fit Applications

Homes, offices, shops and CCTV systems.

Technical Specifications

ModelTL-SG1008MP
Hardware Features
Interface8 10/100/1000Mbps RJ45 Ports / AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5, 5e cable (maximum 100m) / 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan QuantityFanless
Physical Security LockNo
Power Supply100-240VAC, 50/60Hz
Packet Forwarding Rate11.904 Mpps
PoE Ports (RJ45)Standard: 802.3af/at compliant / PoE+ Ports: 8 Ports / Power Supply: 153W
Mac Address Table4K
Buffer Size1.5Mbits
Jumbo Frame16 KB
Switching Capacity16Gbps
Dimensions ( W x D x H )11.6*7.1*1.7 in. (294*180*44 mm)
MountingDesktop/Rack Mountable
Max. Power Consumption8.77 W(220V/50Hz. no PD connected) / 172.49 W(110V/60Hz. with 153W PD connected)
Max Heat Dissipation29.91 BTU/h(no PD connected) / 588.19 BTU/h(with 153W PD connected)
Software Features
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant PDs / Priority Function / IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode / Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) / PoE Auto Recovery (Ports 1-8)
Transmission MethodStore-And-Forward
