Smart Manged Switchs

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Model TL-SG2210MP
  1. All Products
  2. Smart Manged Switchs
  3. TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
End User
Product Code: TL-SG2210MP
TP-Link

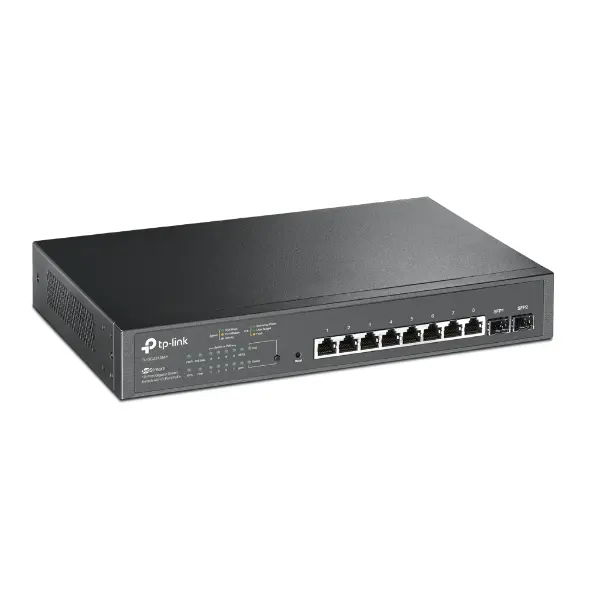

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1127/image_1920?unique=00d79a2

سويتش مُدار من TP-Link Omada / JetStream بيدعم VLAN و QoS ومميزات حماية وإدارة مركزية لشبكات الشركات.

  • الواجهات: 8 منفذ 10/100/1000 Mbps RJ45، كلها تدعم PoE+ (Auto-Negotiation/Auto MDI/MDIX) / 2 منفذ 100/1000 Mbps SFP
  • مصدر الطاقة: 100-240V AC, 50/60Hz
  • منافذ PoE (RJ45): المعيار: متوافق مع 802.3at/af / منافذ PoE: 8 منفذ / ميزانية PoE: 150 W*
  • سعة التحويل: 20 Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SG2210MP

Key Features

  • Interface: 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) / 2× 100/1000 Mbps SFP Slots
  • Power Supply: 100-240V AC, 50/60Hz
  • PoE Ports (RJ45): Standard: 802.3at/af compliant / PoE+ Ports: 8 Ports / PoE Power Budget: 150 W*
  • Switching Capacity: 20 Gbps

Best Fit Applications

Company networks, server rooms, CCTV systems, hotels and schools.

Technical Specifications

ModelTL-SG2210MP
Hardware Features
Interface8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) / 2× 100/1000 Mbps SFP Slots
Network Media10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) / 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) / 100BASE-FX: MMF, SMF / 1000BASE-X: MMF, SMF
Fan Quantity1
Physical Security LockYes
Power Supply100-240V AC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant / PoE+ Ports: 8 Ports / PoE Power Budget: 150 W*
Dimensions ( W x D x H )11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
MountingRackmount/Desktop
Max. Power ConsumptionV1: 173.9 W (110 V/60 Hz) (with 150 W PD connected) / 12.2 W (110 V/60 Hz) (no PD connected) / V2: 169.5 W (220 V/50Hz) (with 150 W PD connected) / V3: 175.3 W (110 V/60Hz) (with 150 W PD connected) / V4: 174.2 W (110V/60Hz) (with 150 W PD connected)
Max Heat DissipationV1: 41.63 BTU/h (with no PD connected) / 539.35 BTU/h (with 150 W PD connected) / V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected) / V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected) / V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)
Performance
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
Switching Capacity20 Gbps
Packet Forwarding Rate14.9 Mpps
MAC Address Table8K
Software Features
Quality of Service802.1p CoS/DSCP priority / 8 priority queues / Priority Schedule Mode / - SP (Strict Priority) / - WRR (Weighted Round Robin) / Queue Weight Config / Bandwidth Control / - Port/Flow based Rating Limit / Smoother Performance / Storm Control
L2 and L2+ FeaturesDHCP Relay / - DHCP VLAN Relay / DHCP L2 Relay / Link Aggregation / - Static link aggregation / - 802.3ad LACP / - Up to 8 aggregation groups and up to 8 ports / per group / Spanning Tree Protocol / - 802.1D STP
L2 Multicast511 IPv4, IPv6 shared multicast groups / IGMP Snooping / - IGMP v1/v2/v3 Snooping / - Fast Leave / - IGMP Snooping Querier / - Static Group Config / Multicast VLAN Registration (MVR) / Multicast Filtering / MLD Snooping / - MLD v1/v2 Snooping
Advanced FeaturesAutomatic Device Discovery / Batch Configuration / Batch Firmware Upgrading / Intelligent Network Monitoring / Abnormal Event Warnings / Unified Configuration / Reboot Schedule
VLANVLAN Group / - Max. 4K VLAN Groups / 802.1Q tag VLAN / MAC VLAN: 12 Entries / Protocol VLAN / GVRP / Voice VLAN
Access Control ListSupport up to 230 entries / Time-Range / - Time Slice / - Week Time-Range / - Absolute Time-Range / - Holiday / Time-based ACL / MAC ACL / - Source MAC / - Destination MAC
SecurityAAA / 802.1X / - Port based authentication / - MAC (Host) based authentication / - Authentication Method includes PAP/EAP-MD5 / - MAB / - Guest VLAN / - Support Radius authentication and / accountability / IP/IPv6-MAC Binding
IPv6IPv6 Static Routing and ACL / IPv6 Dual IPv4/IPv6 / IPv6 Interface / Multicast Listener Discovery (MLD) Snooping / IPv6 neighbor discovery (ND) / Internet Control Message Protocol (ICMP) / version 6 / TCPv6/UDPv6 / IPv6 applications / - DHCPv6 Client
Management Features
Management FeaturesWeb-based GUI / SNMPv1/v2c/v3 / SNMP Trap/Inform / RMON (1,2,3,9 groups) / SDM Template / DHCP/BOOTP Client / Dual Image, Dual Configuration / CPU Monitoring / Cable Diagnostics / EEE
