Smart Manged Switchs

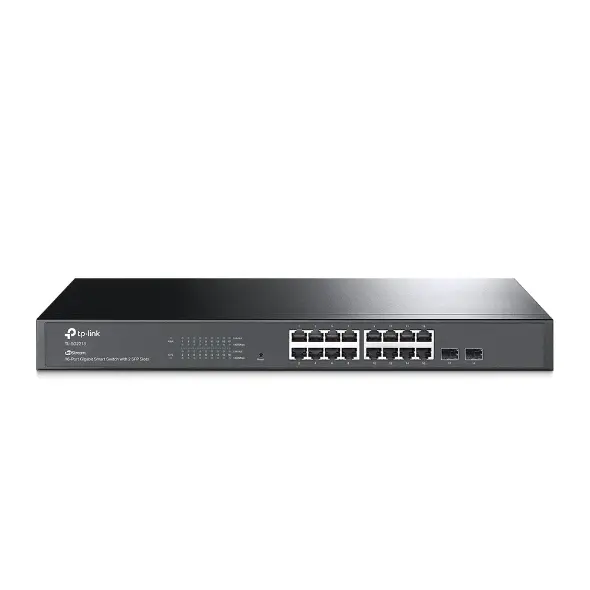

TP-Link TL-SG2218 JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots

Model TL-SG2218
  1. All Products
  2. Smart Manged Switchs
  3. TP-Link TL-SG2218 JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
End User
Product Code: TL-SG2218
TP-Link

TP-Link TL-SG2218 JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots

TP-Link TL-SG2218 JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1126/image_1920?unique=00d79a2

سويتش مُدار من TP-Link Omada / JetStream بيدعم VLAN و QoS ومميزات حماية وإدارة مركزية لشبكات الشركات.

  • الواجهات: 16 منفذ 10/100/1000 Mbps RJ45 / 2 منفذ جيجابت SFP
  • مصدر الطاقة: 100-240 V AC~50/60 Hz
  • سعة التحويل: 36 Gbps

This combination does not exist.

  • Switches
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TL-SG2218

Key Features

  • Interface: 16× 10/100/1000 Mbps RJ45 Ports / 2× Gigabit SFP Slots
  • Power Supply: 100-240 V AC~50/60 Hz
  • Switching Capacity: 36 Gbps

Best Fit Applications

Company networks, server rooms, CCTV systems, hotels and schools.

Technical Specifications

ModelTL-SG2218
Hardware Features
Interface16× 10/100/1000 Mbps RJ45 Ports / 2× Gigabit SFP Slots
Fan QuantityFanless
Power Supply100-240 V AC~50/60 Hz
Dimensions ( W x D x H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
MountingRack Mountable
Max. Power Consumption12.3 W (220 V/50 Hz)
Max Heat Dissipation41.97 BTU/hr
Performance
Jumbo Frame9 KB
Switching Capacity36 Gbps
Packet Forwarding Rate26.8 Mpps
MAC Address Table8K
Software Features
Quality of Service8 priority queues / 802.1p CoS/DSCP priority / Queue scheduling / - SP (Strict Priority) / - WRR (Weighted Round Robin) / - SP+WRR / Bandwidth Control / - Port/Flow based Rating Limiting / Smoother Performance / Action for Flows
L3 Features16 IPv4/IPv6 Interfaces / Static Routing / - 48 static routes / Static ARP / 316 ARP Entries / Proxy ARP / Gratuitous ARP / DHCP Server / DHCP Relay / DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation / - Static link aggregation / - 802.3ad LACP / - Up to 8 aggregation groups and up to 8 ports per group / Spanning Tree Protocol / - 802.1d STP / - 802.1w RSTP / - 802.1s MSTP / Loopback Detection / - Port-based
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups / IGMP Snooping / - IGMP v1/v2/v3 Snooping / - Fast Leave / - IGMP Snooping Querier / - IGMP Authentication / IGMP Authentication / MVR / MLD Snooping / - MLD v1/v2 Snooping
Advanced FeaturesAutomatic Device Discovery / Batch Configuration / Batch Firmware Upgrading / Intelligent Network Monitoring / Abnormal Event Warnings / Unified Configuration / Reboot Schedule
VLANVLAN Group / - Max 4K VLAN Groups / 802.1q Tagged VLAN / MAC VLAN: 12 Entries / Protocol VLAN: Protocol Template 16, Protocol VLAN 16 / GVRP / Voice VLAN
Access Control ListTime-based ACL / MAC ACL / - Source MAC / - Destination MAC / - VLAN ID / - User Priority / - Ether Type / IP ACL / - Source IP / - Destination IP
SecurityIP-MAC-Port Binding / - DHCP Snooping / - ARP Inspection / - IPv4 Source Guard / IPv6-MAC-Port Binding / - DHCPv6 Snooping / - ND Detection / - IPv6 Source Guard / DoS Defend / Static/Dynamic Port Security
IPv6IPv6 Dual IPv4/IPv6 / Multicast Listener Discovery (MLD) Snooping / IPv6 ACL / IPv6 Interface / Static IPv6 Routing / IPv6 neighbor discovery (ND) / Internet Control Message Protocol (ICMP) version 6 / TCPv6/UDPv6 / IPv6 applications / - DHCPv6 Client
Management Features
Management FeaturesWeb-based GUI / SNMPv1/v2c/v3 / SNMP Trap/Inform / RMON (1,2,3,9 groups) / SDM Template / DHCP/BOOTP Client / Dual Image, Dual Configuration / CPU Monitoring / Cable Diagnostics / EEE

No PDF files or external links are attached to this product yet.
