IP Cameras

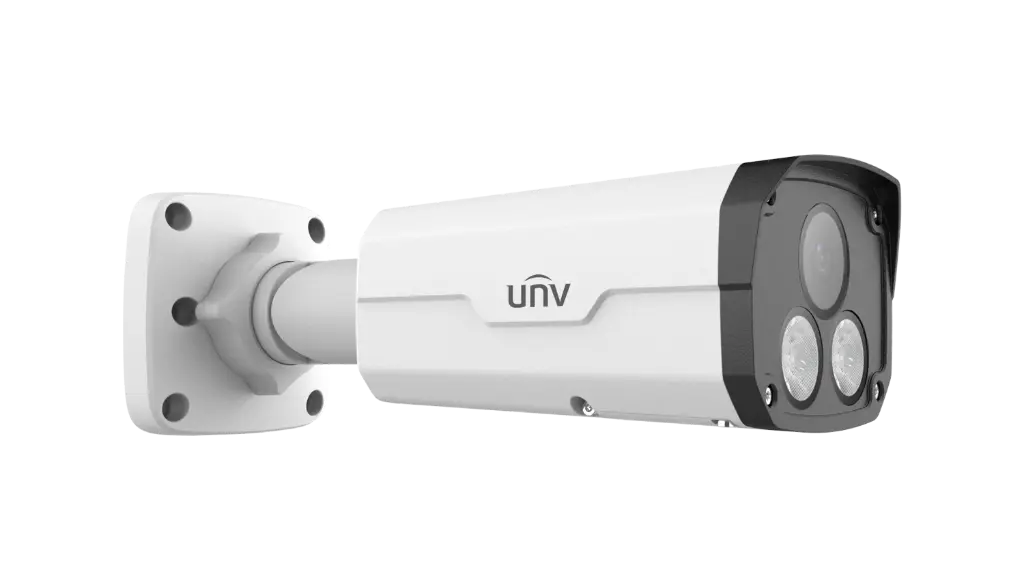

Uniview 5MP ColorHunter Fixed Warm Light Bullet Network Camera

Model IPC2225SE-DF40K-WL-I0
  1. All Products
  2. All Products
  3. Uniview 5MP ColorHunter Fixed Warm Light Bullet Network Camera
End User
Product Code: IPC2225SE-DF40K-WL-I0
Uniview

Uniview 5MP ColorHunter Fixed Warm Light Bullet Network Camera

Uniview 5MP ColorHunter Fixed Warm Light Bullet Network Camera (IPC2225SE-DF40K-WL-I0) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/93/image_1920?unique=c45359a
IPC2225SE-DF40K-WL-I0

• High quality image with 5 MP, 1/2.7" CMOS sensor
• 5 MP (2880 × 1620)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights, accurately focusing on human, motor vehicle and non-motor vehicle
• Intelligent people flow counting and crowd density monitoring
• ColorHunter technology ensures 24-hour full-color images
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection
• Supports PoE power supply

This combination does not exist.

  • IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model IPC2225SE-DF40K-WL-I0

Technical Specifications

ModelIPC2225SE-DF40K-WL-I0
Camera
Max Resolution5 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.001 Lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N>56 dB
WDR120 dB
Lens
Focal Length4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)80.2°
Field of View (V)43.0°
Field of View (D)94.7°
DORI
DORI Distance (Lens)4 mm
DORI Distance (Detect)90.0 m (295.3 ft.)
DORI Distance (Observe)36.0 m (118.1 ft.)
DORI Distance (Recognize)18.0 m (59.1 ft.)
DORI Distance (Identify)9.0 m (29.5 ft.)
Illuminator
Supplemental LightWarm light
Illumination Distance (Warm Light)30 m (98.4 ft)
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate-Third StreamD1 (720 × 576), max. 30 fps / 640 × 360, max. 30 fps / 2CIF (704 × 288), max. 30 fps / CIF (352 × 288), max. 30 fps
H.264 Code ProfileBaseline profile, Main profile, High profile
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamTriple streams
Frame Rate-Main Stream5 MP (2880 × 1620), max. 30 fps / 4 MP (2560 × 1440), max. 30 fps / 3 MP (2304 × 1296), max. 30 fps / 1080P (1920 × 1080), max. 30 fps / 720P (1280 × 720), max. 30 fps
Frame Rate-Sub Stream720P (1280 × 720), max. 30 fps / D1 (720 × 576), max. 30 fps / 640 × 360, max. 30 fps
Smart IlluminationSupport
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital defog
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density detection
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio CompressionG.711U, G.711A, AAC-LC
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way AudioSupport
SuppressionSupport
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Interface
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O1/1
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)IK10 (IEC 62262:2002)
General
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 9.0 W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions246 mm × 86 mm × 85 mm (9.7" × 3.4" × 3.3" ) (L × W × H)
Weight0.92 kg (2.02 lb)
MaterialMetal
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
