Uniview 5MP Tri-Guard Fixed Dual-light Turret Network Camera Built-in mic and speaker

Model IPC3615SB-ADF28KMC-I0
  1. All Products
  2. All Products
  3. Uniview 5MP Tri-Guard Fixed Dual-light Turret Network Camera Built-in mic and speaker
End User
Product Code: IPC3615SB-ADF28KMC-I0
Uniview

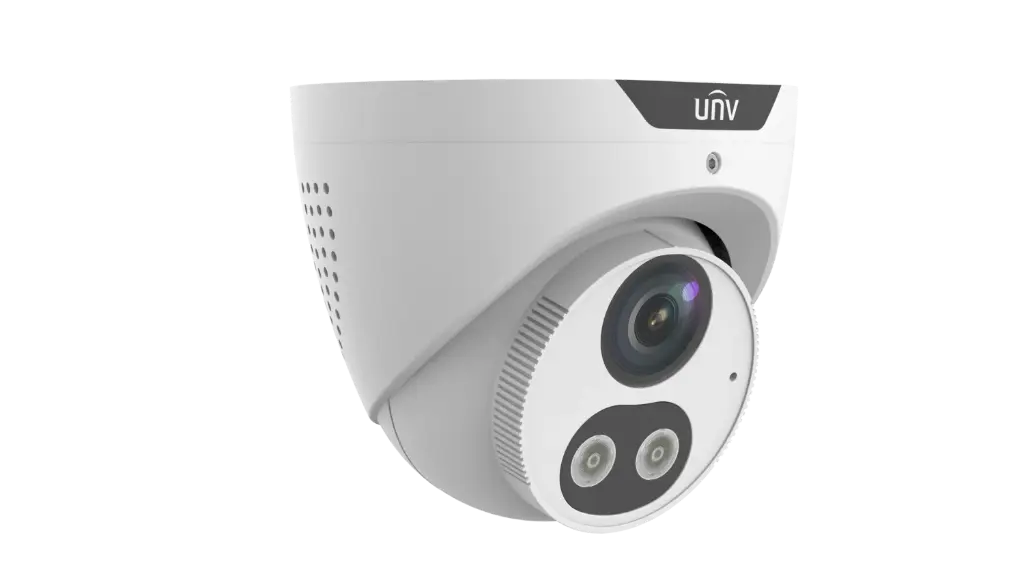

Uniview 5MP Tri-Guard Fixed Dual-light Turret Network Camera Built-in mic and speaker

Uniview 5MP Tri-Guard Fixed Dual-light Turret Network Camera Built-in mic and speaker (IPC3615SB-ADF28KMC-I0) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/110/image_1920?unique=ab53d55
IPC3615SB-ADF28KMC-I0

• High quality image with 5 MP, 1/2.7" CMOS sensor
• 5 MP (2880 × 1620)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage
• Intelligent people flow counting and crowd density monitoring
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply

This combination does not exist.

  • IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model IPC3615SB-ADF28KMC-I0

Technical Specifications

ModelIPC3615SB-ADF28KMC-I0
Camera
Max Resolution5 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 Lux with light
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N>52 dB
WDR120 dB
Lens
Focal Length2.8 mm
Iris TypeFixed
IrisF1.6
Field of View (H)110.0°
Field of View (V)58.7°
Field of View (D)130°
Lens TypeFixed
DORI
DORI Distance (Lens)2.8 mm
DORI Distance (Detect)63.0 m (206.7 ft.)
DORI Distance (Observe)25.2 m (82.7 ft.)
DORI Distance (Recognize)12.6 m (41.3 ft.)
DORI Distance (Identify)6.3 m (20.7 ft.)
Illuminator
Supplemental LightDual light
Illumination Distance (IR)30 m (98.4 ft)
Illumination Distance (Warm Light)30 m (98.4 ft)
Light On/Off ControlAuto/Manual
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 5 MP (2880 × 1620), max. 30 fps / 4 MP (2560 × 1440), max. 30 fps / 3 MP (2304 × 1296), max. 30 fps / 1080P (1920 × 1080), max. 30 fps / Sub Stream: 720P (1280 × 720), max. 30 fps / D1 (720 × 576), max. 30 fps / 640 × 360, max. 30 fps / Third Stream: D1 (720 × 576), max. 30 fps / 640 × 360, max
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamTriple streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
BLCSupport
DefogDigital defog
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport people flow counting and crowd density detection
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U, G.711A, AAC-LC
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way AudioSupport
SuppressionSupport
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Interface
Built-in MicSupport
Built-in SpeakerSupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
ProtectionIP67 (IEC 60529)
General
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 7.5 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)
Weight0.44 kg (0.970 lb)
MaterialMetal + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
