FXS Gateway

Yeastar TA1600 16-Port FXS VoIP Gateway, RJ21

Model TA1600
  1. All Products
  2. Yeastar
  3. Yeastar TA1600 16-Port FXS VoIP Gateway, RJ21
End User
Yeastar TA1600 16-Port FXS VoIP Gateway, RJ21
Product Code: TA1600
Yeastar

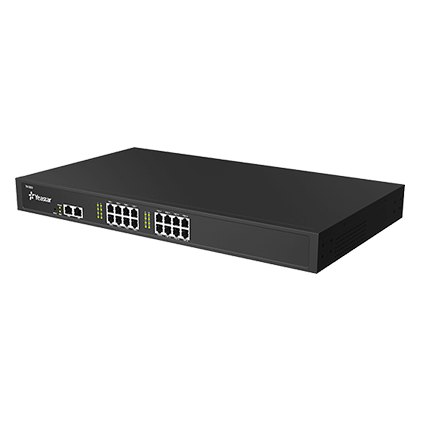

Yeastar TA1600 16-Port FXS VoIP Gateway, RJ21

Yeastar TA1600 16-Port FXS VoIP Gateway, RJ21 is a ATA VoIP Gateway product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/2398/image_1920?unique=f1ca986

16 FXS ports | High-density analog

A medium-density analog gateway for projects with a substantial installed base of legacy phones and simpler structured cabling.

  • 16 FXS ports
  • RJ21 connector
  • SIP and IAX2
  • Suitable for hospitality

This combination does not exist.

  • VoIP Gateway
  • 2-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model TA1600

Key Specifications

  • 16 FXS ports
  • High-density analog

Key Capabilities

  • 16 FXS ports
  • RJ21 connector
  • SIP and IAX2
  • Suitable for hospitality

Best Fit Applications

Small and medium hotels, schools, hospitals and administrative buildings.

Technical Specifications

FXS Ports16
Telephony InterfaceRJ11 and RJ21 50-pin Telco connector
Ethernet1 x WAN + 1 x LAN 10/100 Mbps
Power SupplyAC 100-240V (internal)
Dimensions440 x 250 x 44 mm
MountingDesktop / 19" rack-mount
ProtocolsSIP (RFC3261), IAX2 over UDP/TCP/TLS, SRTP
CodecsG.711 (A/µ-law), G.722, G.726, G.729A/B, GSM, ADPCM
FaxT.38 and T.30 pass-through
Voice ProcessingG.168 echo cancellation, dynamic jitter buffer, VAD, CNG, PLC
Caller IDBell 202, ETSI (V.23), NTT, DTMF-based
Line Reach3 REN, up to 1.5 km on 24 AWG wire
NetworkDHCP, DDNS, OpenVPN, VLAN, QoS (DiffServ/ToS/802.1p/Q), built-in firewall
ManagementWeb GUI, auto provisioning, TR-069, backup/restore
Operating Temperature0 ~ 40 °C
Humidity10 ~ 90% non-condensing
