Product Code:
TE100

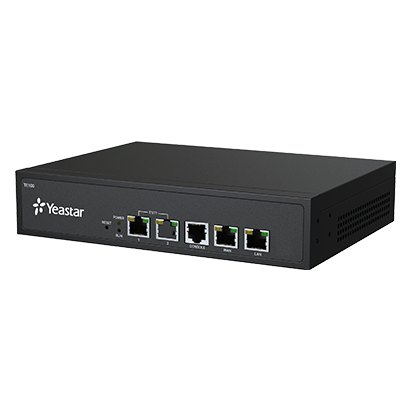

Yeastar TE100 PRI VoIP Gateway, 1x E1/T1/J1
Yeastar TE100 PRI VoIP Gateway, 1x E1/T1/J1 is a ATA VoIP Gateway product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
1 x E1/T1/J1 | Up to ~30 E1 channels
Converts PRI/E1/T1/J1 to SIP/VoIP and back, bridging traditional telecom infrastructure with modern IP systems.
- 1 E1/T1/J1 port
- PRI to SIP
- Legacy PBX migration
- Approx. 30 E1 channels
General
| Model | TE100 |
|---|
Key Specifications
- 1 x E1/T1/J1
- Up to ~30 E1 channels
Key Capabilities
- 1 E1/T1/J1 port
- PRI to SIP
- Legacy PBX migration
- Approx. 30 E1 channels
Best Fit Applications
Customers with one PRI/E1 circuit that must connect to an IP PBX or migrate in phases.
Technical Specifications
| E1/T1/J1 Ports | 1 |
|---|---|
| Concurrent Calls | Up to 30 (E1) |
| E1/T1/J1 Mode | Software configurable, programmable TE/NT mode |
| Signalling | PRI (Euro ISDN, National, Q.SIG), CAS MFC R2, SS7 (ITU, ANSI, China) |
| Ethernet | Dual 10/100/1000 Mbps (LAN/WAN) |
| Protocol | SIP (RFC3261) over UDP/TCP/TLS, SRTP |
| Codecs | G.711a/u, G.722, G.726, G.729a, GSM, Speex, ADPCM |
| Features | T.38 fax, call routing rules, trunk groups, SIP trunk / peer mode, SIP registrar, CDR, blacklist |
| Echo Cancellation | ITU-T G.168 LEC |
| Power Supply | AC 100-240V (12V 2A) |
| Dimensions | 213 x 160 x 44 mm |
| Operating Temperature | 0 ~ 40 °C |
| Humidity | 10 ~ 90% non-condensing |
