Product Code:
SF100

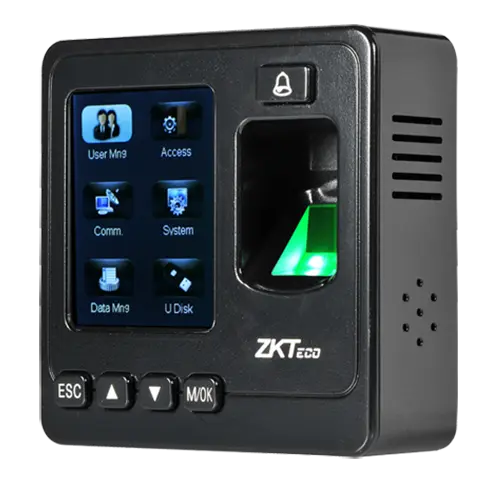

ZkTeco IP Based Fingerprint Terminal
ZkTeco IP Based Fingerprint Terminal (SF100) is a Access Control Device product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
SF100
The ZKTeco SF100 is an IP-based fingerprint terminal used for access control and time attendance. It can operate in network and standalone modes and features multiple functions for security and employee management.
Key features
- Authentication methods: The SF100 verifies users through fingerprints and optionally via ID/Mifare cards.
- Operating modes: Can be used in network mode to connect with management software, or in standalone mode for simple access control.
- Advanced security: Supports an anti-passback function and a master/slave solution that requires user verification at both entry and exit points.
- Auxiliary input: Includes an auxiliary input interface for connecting to external devices such as a smoke detector or an emergency switch.
- Interface: Features a 2.4-inch TFT color screen for easy navigation and user management.
Specifications.
- Fingerprint capacity: 1,500
- Card capacity: 5,000 (optional, EM/Mifare)
- Log capacity: 80,000 records
- Communication: TCP/IP, RS485, USB Host
- Access control interface: Electric lock, door sensor, alarm, exit button, doorbell
- Wiegand signal: Wiegand input and output
- Power supply: DC 12V/3A
- Dimensions (W x L x H): 90 x 90 x 34.5 mm
Use cases
- Office buildings: Manage employee attendance and control access to restricted areas.
- Schools and banks: Secure entrances and monitor traffic in high-security zones.
- Government facilities: Record and manage time attendance for official personnel.
- Factories and warehouses: Track employee presence and restrict access to specific production or storage areas.
General
| Model | SF100 |
|---|
Technical Specifications
| Model | SF100 |
| Specifications | |
| LCD | 2.4-inch TFT (320 x 240) Color Screen |
| Fingerprint Sensor Type (optional) | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger V10.0 |
| Communication | TCP / IP, RS485*, USB Host |
| Fingerprint Capacity | 1,500 |
| Card Capacity | 5,000 (EM/IC Card) (Optional) |
| Record Capacity | 80,000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Doorbell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power Supply | DC 12V / 3A |
| Operating Temperature | 0 ~ 45°C (32° ~ 113°F) |
| Operating Humidity | 20 ~ 80% |
| Dimension | 90 x 90 x 34.5mm (W * L * H) |
