كود المنتج:
ZK8500R

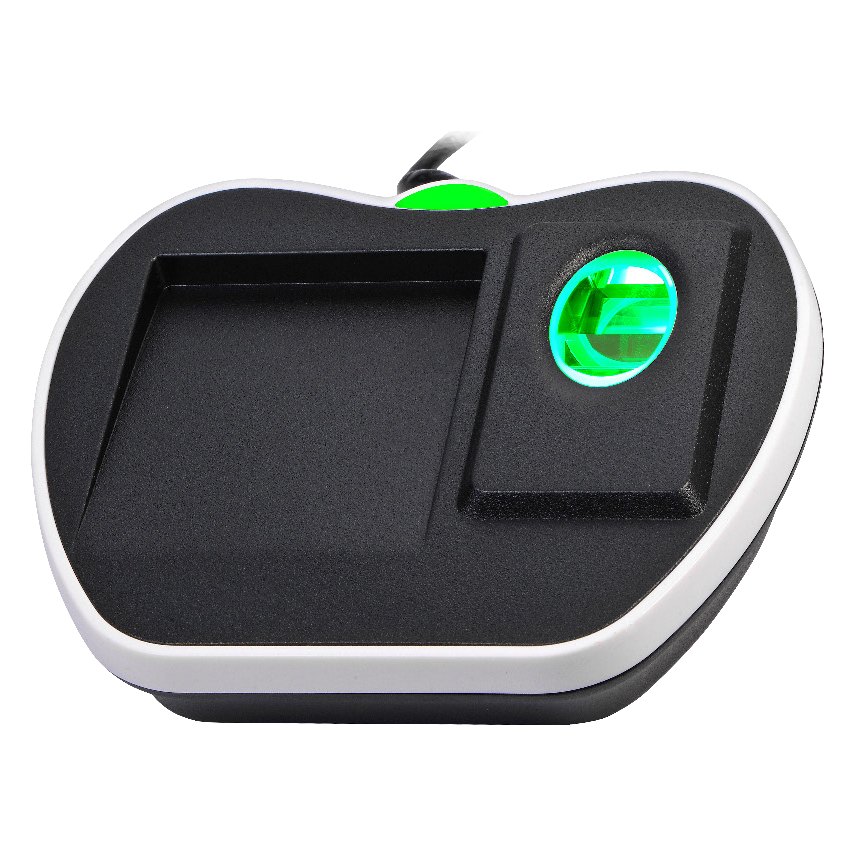

ZKTeco ZK8500R USB Fingerprint Enrollment Scanner & EM / Mifare Card Issuer
ZKTeco ZK8500R USB Fingerprint Enrollment Scanner & EM / Mifare Card Issuer من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
ZK8500R is a USB fingerprint scanner and card issue device to enroll user fingerprints and card numbers (ID / Mifare) into ZKTeco software; it replaces ZK4500 + CR10E + CR10M.
- Card Reader: 125KHz EM & 13.56MHz Mifare
- Fingerprint Sensor: Optical, 500 dpi, 0.3 MP CMOS
- Effective Collecting Area: 13.24 * 15.7 mm
- Image Size: 280*360 pixel, 256 gray levels
- CPU: 120MHz DSP
عام
| الموديل | ZK8500R |
|---|
Key Features
- Card Reader: 125KHz EM & 13.56MHz Mifare
- Fingerprint Sensor: Optical, 500 dpi, 0.3 MP CMOS
- Effective Collecting Area: 13.24 * 15.7 mm
- Image Size: 280*360 pixel, 256 gray levels
- CPU: 120MHz DSP
- Communication: USB 2.0 / 1.1 / 1.0, USB Type A
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | ZK8500R |
|---|---|
| Card Reader | 125KHz EM & 13.56MHz Mifare |
| Fingerprint Sensor | Optical, 500 dpi, 0.3 MP CMOS |
| Effective Collecting Area | 13.24 * 15.7 mm |
| Image Size | 280*360 pixel, 256 gray levels |
| CPU | 120MHz DSP |
| Communication | USB 2.0 / 1.1 / 1.0, USB Type A |
| Power | 5V (USB), 300mA |
| Operating System | Windows 2000 / XP / 2003 / Vista / 7 / 8 (32/64bit) |
| LED | Green |
| Dimensions | 124.5 * 102 * 34 mm (L*W*H) |
| Weight | 0.27 kg |
| Operating Environment | -20°C to +50°C; 90% RH |

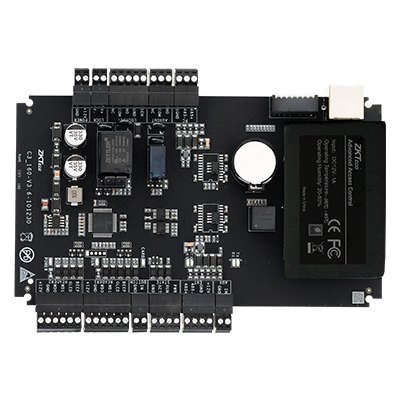

![[C3-100 Plus] ZKTeco C3-100 Plus 1-Door IP Access Control Panel](/web/image/product.template/3060/image_512)

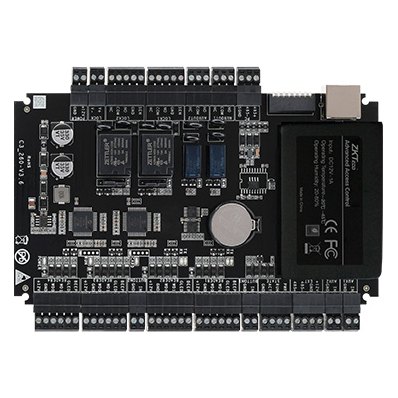

![[C3-200 Plus] ZKTeco C3-200 Plus 2-Door IP Access Control Panel](/web/image/product.template/3061/image_512)

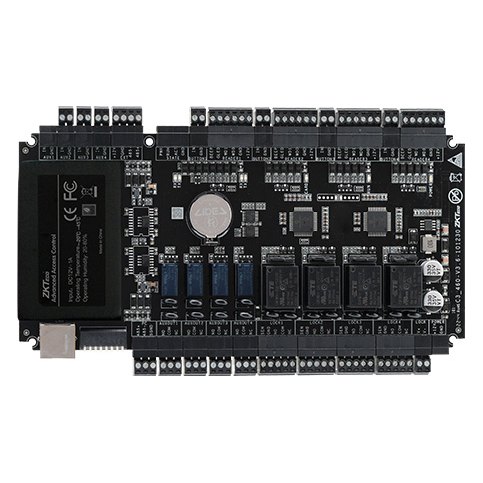

![[C3-400 Plus] ZKTeco C3-400 Plus 4-Door IP Access Control Panel](/web/image/product.template/3062/image_512)

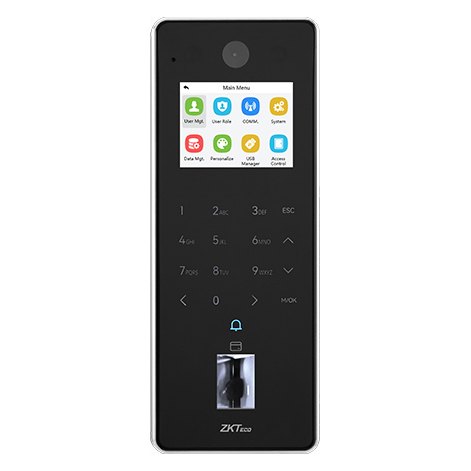

![[F35] ZKTeco F35 Fingerprint Access Control Terminal with Video Intercom](/web/image/product.template/3055/image_512)

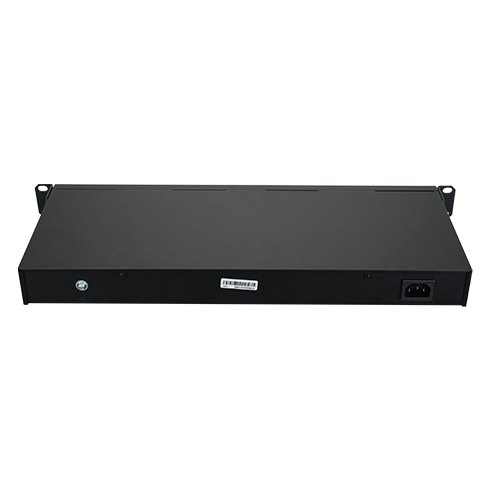

![[InBioPC-800] ZKTeco InBioPC-800 IP Access Control Main Controller (up to 8 doors with DE10)](/web/image/product.template/3063/image_512)

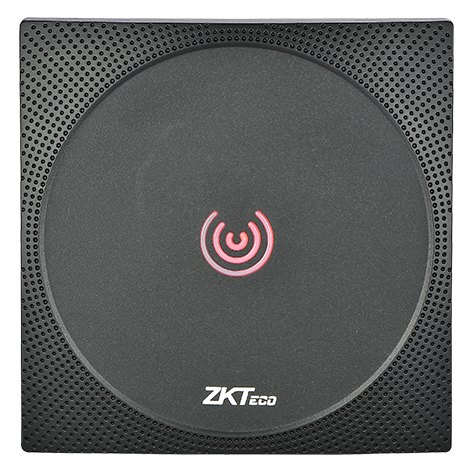

![[KR602-M] ZKTeco KR602-M Mifare (13.56 MHz) Card Reader, Wiegand](/web/image/product.template/3064/image_512)

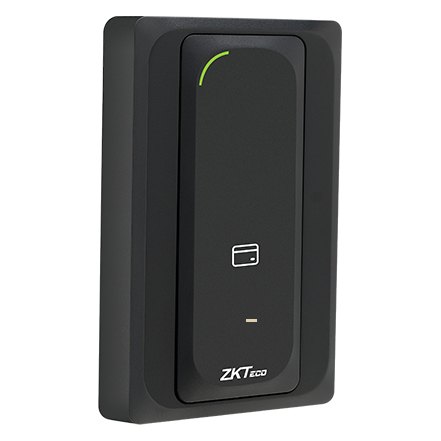

![[KR901] ZKTeco KR901 Multi-tech RFID Card Reader](/web/image/product.template/3065/image_512)

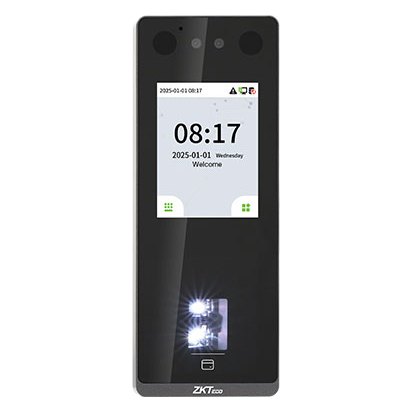

![[SenseFace 3A] ZKTeco SenseFace 3A Face & Fingerprint Access Control Terminal](/web/image/product.template/3056/image_512)
