كود المنتج:
SenseFace 3B

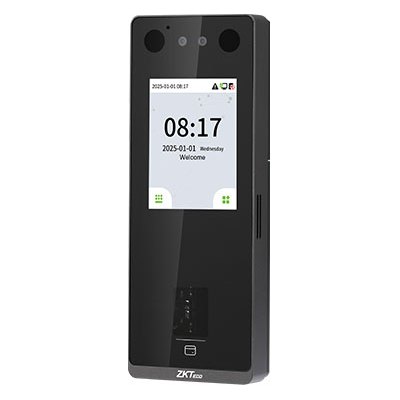

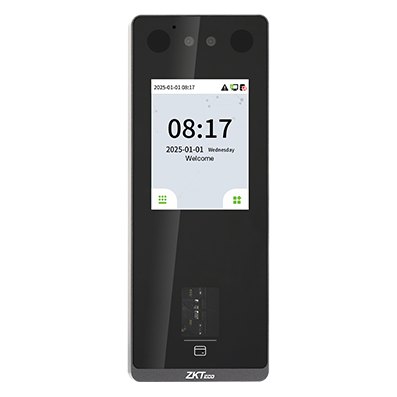

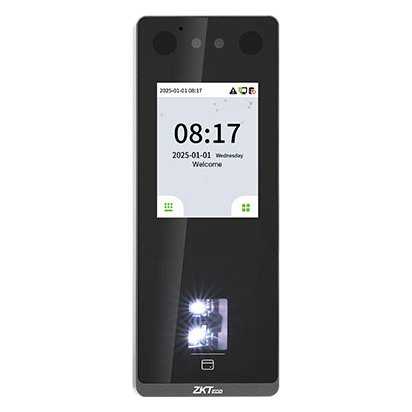

ZKTeco SenseFace 3B Face Access Control Terminal
ZKTeco SenseFace 3B Face Access Control Terminal من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Display: 2.8" @ TFT Color Touch LED Screen (240*320)
- Camera: WDR Binocular Camera @ 1MP
- Operation System: Linux
- Authentication Method: Face / Card / Password (Virtual Keypad)
- Face Template Capacity: 3,000 (1:N) (Standard)
عام
| الموديل | SenseFace 3B |
|---|
Key Features
- Display: 2.8" @ TFT Color Touch LED Screen (240*320)
- Camera: WDR Binocular Camera @ 1MP
- Operation System: Linux
- Authentication Method: Face / Card / Password (Virtual Keypad)
- Face Template Capacity: 3,000 (1:N) (Standard)
- Card Capacity: 6,000 (1:N) (Standard)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | SenseFace 3B |
|---|---|
| Display | 2.8" @ TFT Color Touch LED Screen (240*320) |
| Camera | WDR Binocular Camera @ 1MP |
| Operation System | Linux |
| Hardware | CPU: Dual Core@1GHz / RAM: 512MB; ROM: 8GB / Speaker: 8ohm @1W / Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/ Impedance: 2.2kΩ) / Supplement Light: No / Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 3A) |
| Authentication Method | Face / Card / Password (Virtual Keypad) |
| Face Template Capacity | 3,000 (1:N) (Standard) |
| Card Capacity | 6,000 (1:N) (Standard) |
| User Capacity | 6,000 (1:N) (Standard) |
| Transaction Capacity | 150,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Verification Speed | less than 0.35 sec (Facial Authentication) |
| Touchless Biometric Recognition Distance | 30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication) |
| Biometric Algorithm | ZKFace V4.0 |
| Card Type | ID Card@125 kHz (Standard) / IC Card@13.56 MHz (Optional) |
| Communication | TCP / IP*1 / Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) / Wiegand (Input or Output)*1 / RS485: ZKTeco RS485*1 / USB: Type A (USB Drive Only)*1 / Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, / Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, / Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF / (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch Switch, HTTPs / |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Video Intercom | Video Intercom(ZKTeco Private Protocol via TCP/lP) / Standalone Terminal: SenseFace Series; / Indoor Monitor: VT07-B01, VT07-B01-W / Video Intercom (Standard SIP Protocol) / Standalone Terminal: SenseFace series; / Indoor Monitor: VT07-B22L, VT07-B26L-W; / Software: ZKBio CVAccess, BioTalk Pro; / Mobile App: ZKBio Zlink, ZKBio Zexus |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 166 mm * 63 mm * 25 mm (L*W*H) |
| Net Weight | 0.185 Kg |
| Supported Software | On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH) / Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App) |
| Installation | Wall-mount (Compatible with Asian Gang Box / Single Gang Box) |
| Ingress Protection Rating | IP65 (waterproof and dustproof ) |
