كود المنتج:
SenseFace 4B

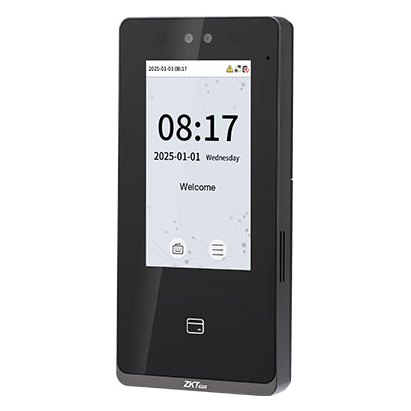

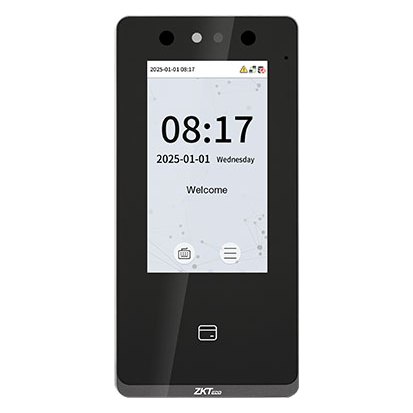

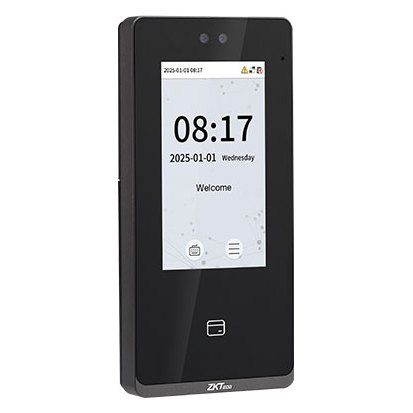

ZKTeco SenseFace 4B Face Access Control Terminal, 4.3-inch
ZKTeco SenseFace 4B Face Access Control Terminal, 4.3-inch من منتجات جهاز تحكم في الدخول. راجع المواصفات الفنية وبيانات المنتج لاختيار الحل المناسب، ومتوفر من دو لينك مصر للفنيين والشركات والمشروعات.
A ZKTeco access control product for secure door entry with biometric / card authentication and ZKTeco software support.
- Display: 4.3"@ TFT Color Touch LED Screen (272*480)
- Camera: WDR Binocular Camera @ 1MP
- Operation System: Linux
- Authentication Method: Face / Card / Password (Virtual Keypad)
- Card Capacity: 8,000 (1:N) (Standard)
عام
| الموديل | SenseFace 4B |
|---|
Key Features
- Display: 4.3"@ TFT Color Touch LED Screen (272*480)
- Camera: WDR Binocular Camera @ 1MP
- Operation System: Linux
- Authentication Method: Face / Card / Password (Virtual Keypad)
- Card Capacity: 8,000 (1:N) (Standard)
- User Capacity: 8,000 (1:N) (Standard)
Best Fit Applications
Offices, companies, factories, schools, hospitals, residential buildings and server rooms.
Technical Specifications
| Model | SenseFace 4B |
|---|---|
| Display | 4.3"@ TFT Color Touch LED Screen (272*480) |
| Camera | WDR Binocular Camera @ 1MP |
| Operation System | Linux |
| Hardware | CPU: Dual Core@1GHz / RAM: 512MB; / ROM: 8GB(Standard Version), ROM: 512MB(Entry Version) / Speaker: 8ohm @1W / Microphone: *1 (Sensitivity: -42 dB / Omni-directional/ Signal-to-Noise Ratio: 58 dB/ / Impedance: 2.2kΩ) / Supplement Light: No / Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 4A) |
| Authentication Method | Face / Card / Password (Virtual Keypad) |
| Card Capacity | 8,000 (1:N) (Standard) |
| User Capacity | 8,000 (1:N) (Standard) |
| Transaction Capacity | 200,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Verification Speed | less than 0.35 sec (Facial Authentication) |
| Touchless Biometric Recognition Distance | 30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% ( Visible Light Facial Authentication) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication) |
| Biometric Algorithm | ZKFace V4.0 |
| Card Type | ID Card@125 kHz (Standard) / IC Card@13.56 MHz (Optional) |
| Communication | TCP / IP*1 / Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) / Wiegand (Input or Output)*1 / RS485: ZKTeco RS485*1 / USB: Type A (USB Drive Only)*1 / Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Access Control Interface | RS485 ( RS485 Card Reader / Biometric Reader) |
| Video Intercom | Video Intercom (ZKTeco Private Protocol via TCP/lP) / Standalone Terminal: SenseFace Series; / Indoor Monitor: VT07-B01, VT07-B01-W / Video Intercom (Standard SIP Protocol) / Standalone Terminal: SenseFace series; / Indoor Monitor: VT07-B22L, VT07-B26L-W; / Software: ZKBio CVAccess, BioTalk Pro; / Mobile App: ZKBio Zlink, ZKBio Zexus |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 175.00 mm * 84.50 mm * 21.65 mm (L*W*H) |
| Net Weight | 0.264 Kg |
| Supported Software | On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH) / Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App) |
| Installation | Wall-mount (Compatible with Asia Gang Box / Single Gang Box) |
| Ingress Protection Rating | IP65 (waterproof and dustproof) |
