Hikvision 16-ch 1.5U AcuSense 4K NVR

Model DS-7716NXI-I4/S
  1. All Products
  2. All Products
  3. Hikvision 16-ch 1.5U AcuSense 4K NVR
End User
Product Code: DS-7716NXI-I4/S
Hikvision

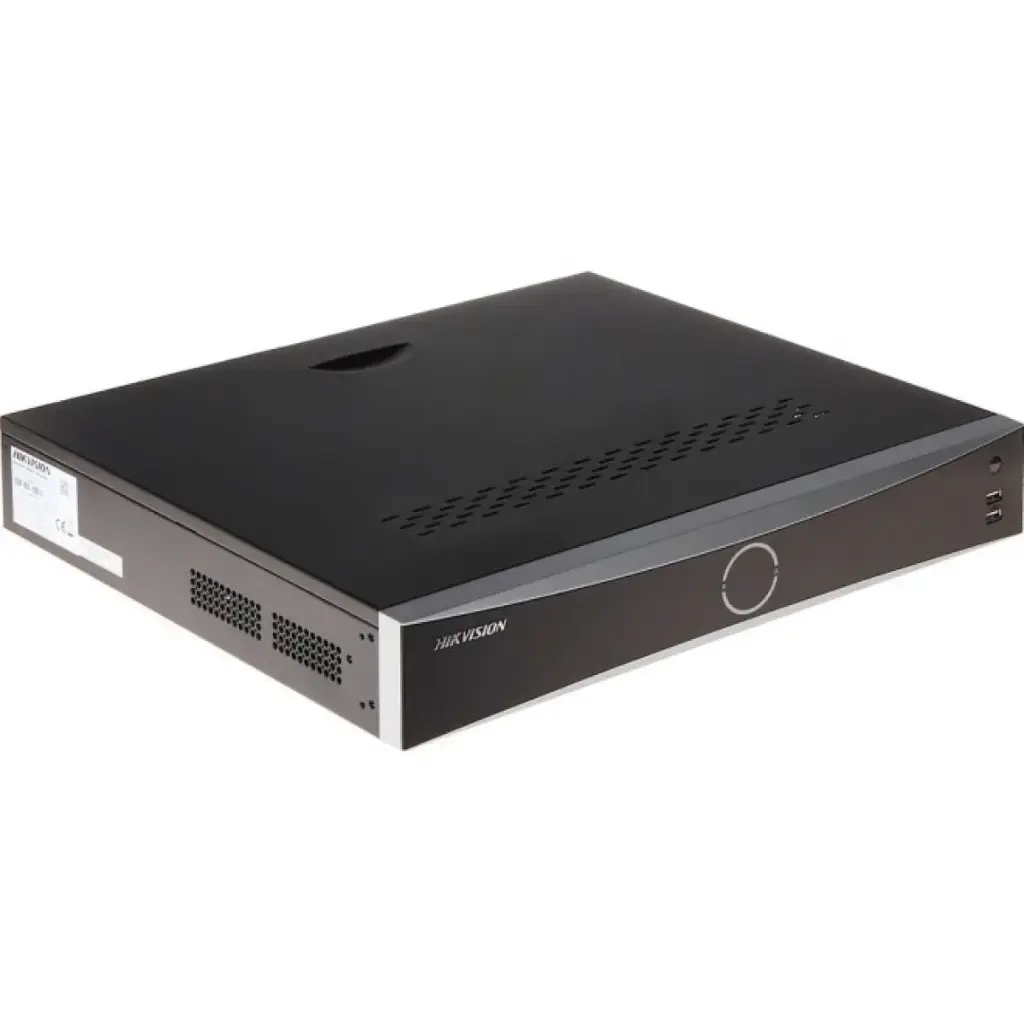

Hikvision 16-ch 1.5U AcuSense 4K NVR

Hikvision 16-ch 1.5U AcuSense 4K NVR (DS-7716NXI-I4/S) is a Network Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/763/image_1920?unique=ab53d55
DS-7716NXI-I4/S

  • H.265+/H.265/H.264+/H.264 video formats
  • Intelligent analytics based on deep learning algorithm
  • Up to 4-ch perimeter protection
  • Up to 4-ch facial recognition for video stream
  • Up to 8-ch facial recognition for face picture
  • Up to 16-ch IP camera inputs
  • Up to 32-ch 1080p decoding capability
  • Up to 8-ch IP speakers can be connected

This combination does not exist.

  • NVRs
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-7716NXI-I4/S

Technical Specifications

ModelDS-7716NXI-I4/S
Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, motion detection 2.0,AcuSearch
AI by CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine1, engine mode is adjustable
AcuSearch
By CameraAll channels ,up to 172,800 targets/day The camera should enable AcuSearch function
Perimeter Protection
By CameraAll channels
Target Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison (Captured from Camera)8-ch
Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 2 MP, H.264/H.265)
Motion Detection 2.0
By CameraAll channels
By NVRAll channels for Hikvision cameras
ANPR
By CameraAll channels Support Countries & Regions: 1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia 2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, S
Vehicle AttributesPlate number, license plate color, license plate type
Plate AttributesVehicle brand, vehicle color, vehicle type
Devices and Servers
Heat Map Camerasheatmap data record and presentation
Video and Audio
IP Video Input16-ch Up to 32 MP resolution *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs.
Incoming Bandwidth160 Mbps
Outgoing Bandwidth256 Mbps
HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
VGA Output1920 × 1080/60 Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/16MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
Synchronous Playback16-ch
Live View Window Division1/2/4/6/8/9/16
Aux Port Window Division1/2/4/6/8/9/16
Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) 1-ch@32 MP (30 fps) / 1-ch@24 MP (30 fps) / 2-ch@16MP (30 fps) / 3-ch@12MP (30 fps) / 5-ch@8 MP (30 fps) / 6-ch@6 MP (30 fps) / 8-ch@5 MP (30 fps) / 10-ch@4 MP (30 fps) / 16-ch@2 MP (30 fps) / Disable AI by NVR: 32-ch@1080p (30 fps) 2-ch@32 MP (30 fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
APIONVIF (profile S/G) / SDK / ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access ProtocolONVIF(Version 2.5), RTSP
Auxiliary Interface
Serial Interface2 RS-485 (half-duplex), 1 RS-232
SATA4 SATA interfaces
CapacityUp to 16 TB capacity for each disk
eSATA1 eSATA interface
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0 / Rear panel: 1 × USB 3.0
Ctrl 12VControllable 12 VDC, 0.5 A power output for external alarm device / The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serb
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 30 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)440 × 391 × 75 mm ( 17.3"× 15.4" × 3.0")
Cyber Security
EN 303645Support
Secure BootSupport
Secure Component Verification SVCSupport
Password ProtectionSupport
IP & MAC Address FilteringSupport
HTTPS EncryptionSupport
Live View & Playback Stream EncryptionSupport : AES128
IEEE802.1X(EAP-TLS) Network Access ControlSupport
Signed FirmwareSupport
OthersDigest authentication: Support User access log : Support Centralized certificate management : Support Brute force delay protection : Support
