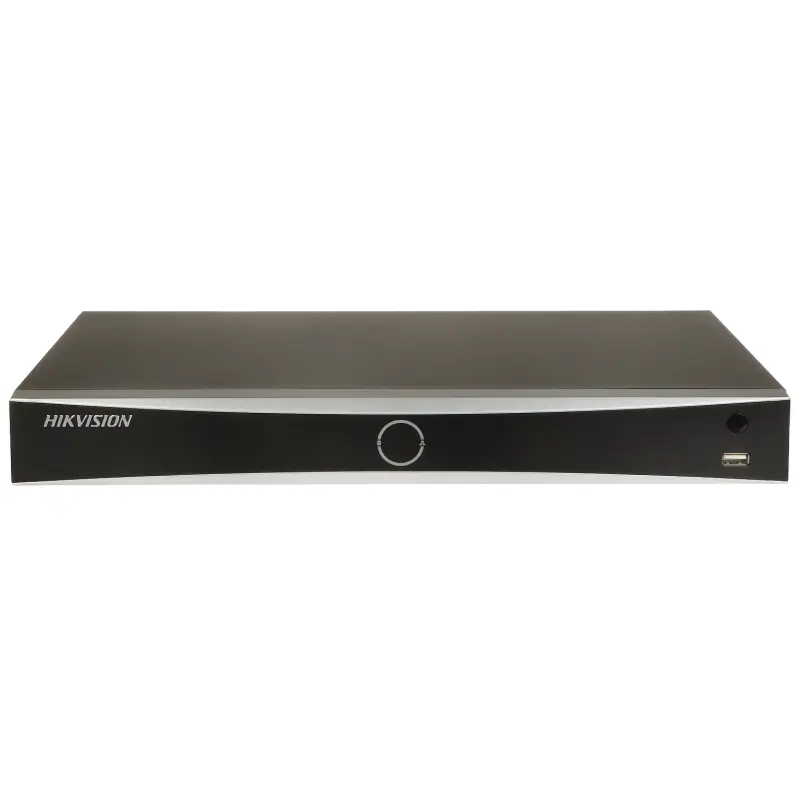

Hikvision 16-ch 1U (K Series AcuSense) 4K NVR Up To 160 Mbps incoming Bandwidth

Model DS-7616NXI-K1
  1. All Products
  2. All Products
  3. Hikvision 16-ch 1U (K Series AcuSense) 4K NVR Up To 160 Mbps incoming Bandwidth
End User
Product Code: DS-7616NXI-K1
Hikvision

Hikvision 16-ch 1U (K Series AcuSense) 4K NVR Up To 160 Mbps incoming Bandwidth

Hikvision 16-ch 1U (K Series AcuSense) 4K NVR Up To 160 Mbps incoming Bandwidth (DS-7616NXI-K1) is a Network Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/688/image_1920?unique=ab53d55
DS-7616NXI-K1

  • Up to 16-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 160 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs
  • Up to 1 SATA interface for HDD connection (up to 10 TB)

This combination does not exist.

  • NVRs
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-7616NXI-K1

Technical Specifications

ModelDS-7616NXI-K1
Intelligent Analytics
AI by Deviceperimeter protection, motion detection 2.0 / Facial recognition,perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Perimeter Protection
By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Target Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search / NA
Face Picture LibraryUp to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB) / Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance1-ch, 4 MP
Face Picture Comparison4-ch / NA
Motion Detection 2.0
By Device4-ch, 4 MP (enhanced SVC mode is mutually exclusive with intelligent analysis functions) video analysis for human and vehicle recognition to reduce false alarm / 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm / All c
By CameraAll channels
Video and Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding CapabilityAI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection128
APIONVIF (profile S/G) / SDK / ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA1 SATA interface
CapacityUp to 10 TB capacity for each HDD
USB InterfaceFront panel: 1 × USB 2.0 / Rear panel: 1 × USB 2.0
General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serb
Power Supply12 VDC, 1.5 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
