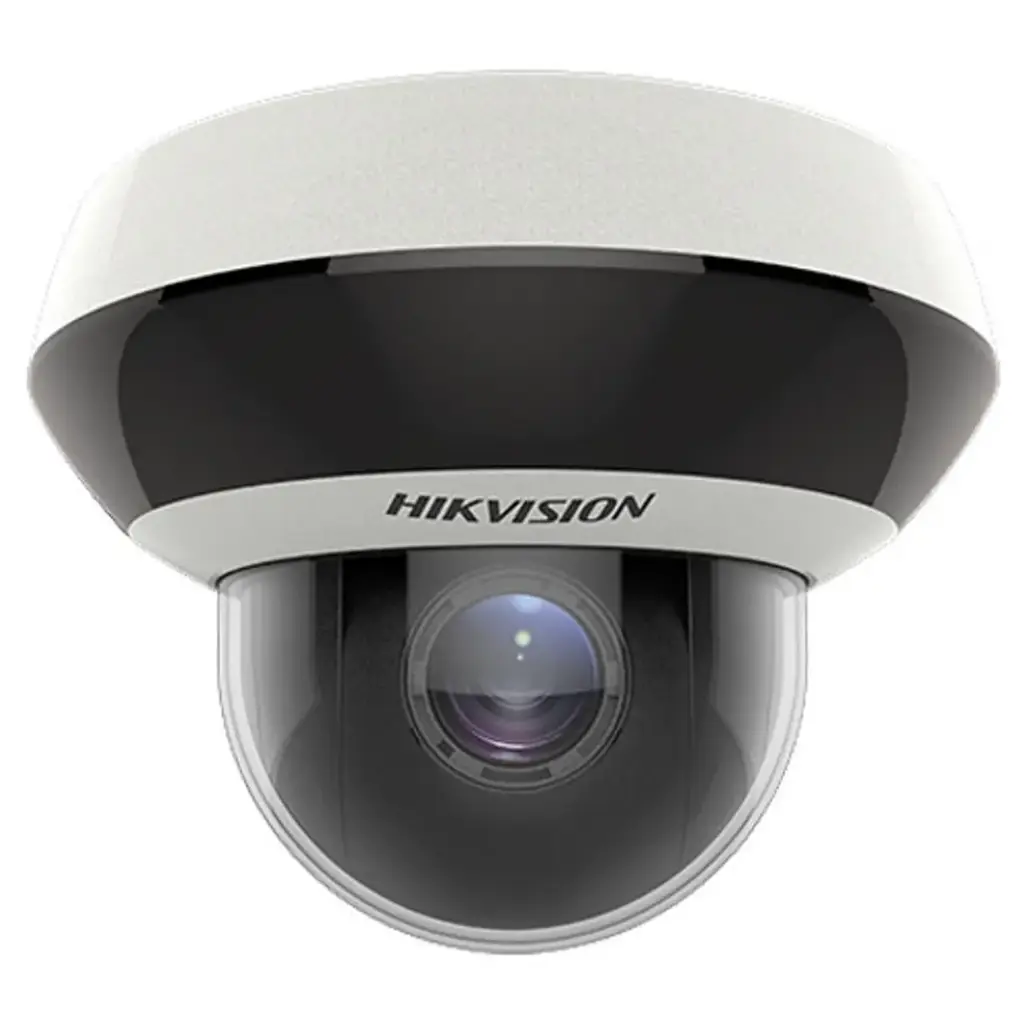

Hikvision 2-inch 2MP 4X Powered by DarkFighter IR Network Speed Dome

Model DS-2DE2A204IW-DE3
  1. All Products
  2. All Products
  3. Hikvision 2-inch 2MP 4X Powered by DarkFighter IR Network Speed Dome
End User
Product Code: DS-2DE2A204IW-DE3
Hikvision

Hikvision 2-inch 2MP 4X Powered by DarkFighter IR Network Speed Dome

Hikvision 2-inch 2MP 4X Powered by DarkFighter IR Network Speed Dome (DS-2DE2A204IW-DE3) is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/362/image_1920?unique=ab53d55
DS-2DE2A204IW-DE3

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 20m IR range ensures safety at night

This combination does not exist.

  • IP Cameras
  • PTZ Cameras
  • Motorized IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2DE2A204IW-DE3

Technical Specifications

ModelDS-2DE2A204IW-DE3
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Day & NightIR cut filter
Zoom4x optical, 16x digital
Slow ShutterYes
Lens
Focal Length2.8 to 12 mm, 4 × Optical
FOVHorizontal FOV 100.5° to 32.66°, vertical FOV 52.84° to 18.356°, diagonal FOV 120.26° to 37.5°
FocusAuto, semi-auto, manual
ApertureMax. F1.5
Zoom SpeedApprox. 2 s
Illuminator
Supplement Light TypeIR
Supplement Light RangeIR Distance: up to 20 m
Smart Supplement LightYes
IR Wavelength850 nm
PTZ
Movement Range (Pan)0° to 355°
Movement Range (Tilt)0° to 90°
Pan SpeedPan speed: configurable from 0.1° to 100°/s / preset speed: 100°/s
Tilt SpeedTilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
Proportional PanYes
Presets300
Preset FreezingYes
Park ActionPreset
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, dome reboot, dome adjust
Power-off MemoryYes
Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) / 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) / 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) / 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream
Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz / MP2L2: 16 kHz, 32 kHz, 48 kHz / PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
Environment Noise FilteringYes
Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users / 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR＞52dB
DefogDigital Defog
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes
Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10% / 1 output (line out), line level, output impedance: 600 Ω
ResetYes
Power Output12 VDC, max. 60 mA
Event
Basic EventMotion detection, video tampering alarm, exception
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)
General
Power12 VDC, Max. 9.2 W / PoE (802.3af)
DimensionØ 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
General FunctionMirror, password protection
