IP Cameras

Hikvision 2MP 25X Powered by DarkFighter IR Acusense Network Speed Dome

Model DS-2DE4225IW-DE(T5)
  1. All Products
  2. All Products
  3. Hikvision 2MP 25X Powered by DarkFighter IR Acusense Network Speed Dome
End User
Product Code: DS-2DE4225IW-DE(T5)
Hikvision

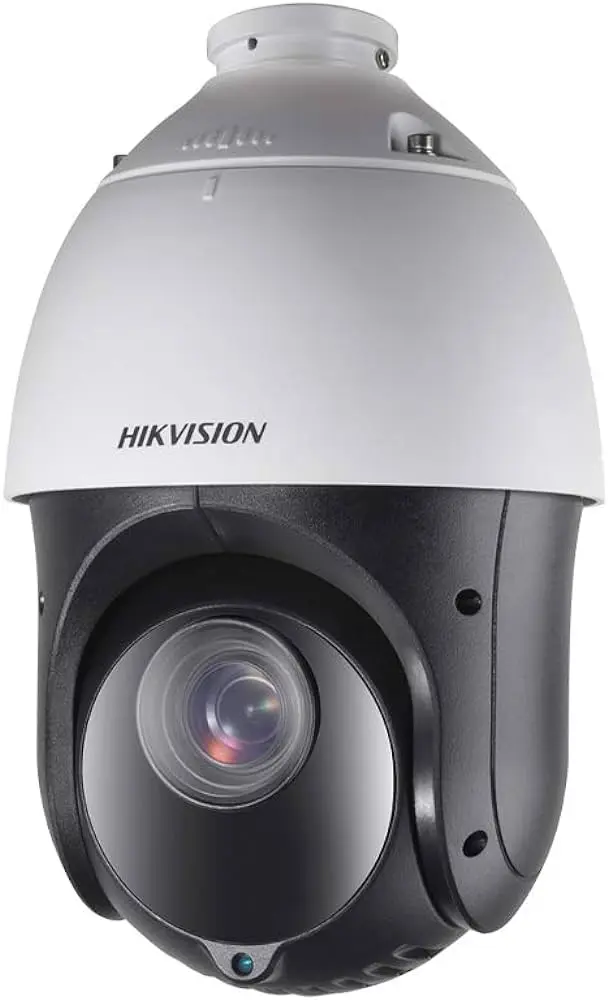

Hikvision 2MP 25X Powered by DarkFighter IR Acusense Network Speed Dome

Hikvision 2MP 25X Powered by DarkFighter IR Acusense Network Speed Dome (DS-2DE4225IW-DE(T5)) is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/363/image_1920?unique=ab53d55
DS-2DE4225IW-DE(T5)

  • Focuses on human and vehicle targets classification based on deep learning
  • Support face capture. Up to 5 faces captured at the same time
  • 1/2.8" progressive scan CMOS
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Expansive night view with up to 100 m IR distance
  • Support H.265+/H.265 video compression

This combination does not exist.

  • IP Cameras
  • PTZ Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2DE4225IW-DE(T5)

Technical Specifications

ModelDS-2DE4225IW-DE(T5)
Lens
FOVHorizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
Zoom SpeedApprox. 3.6 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.6 to F3.5
Focal Length4.8 mm to 120 mm, 25× optical zoom
Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB / NAS (NPS, SMB/ CIPS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address) / HTTPS encryption / IEEE 802.1x port-based network access control / IP address filtering
Interface
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)
Compression Standard
H.265+Support
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
H.265 TypeBaseline Profile/Main Profile/High Profile
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Camera Module
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB WDR
Supplement Light
IR Distance100 m
Smart IRSupport
PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 80°/s, Preset speed: 80°/s
Movement Range (Tilt)From -15° to 90° (auto-flip)
Tilt SpeedConfigurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Proportional ZoomSupport
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemorySupport
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningSupport
Preset FreezingSupport
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
Smart DetectionIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
General
MaterialADC 12, PC, PC+10% GF
DimensionsΦ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Power12 VDC and PoE+ (802.3 at, class4) Max.: 18 W, including max.7W for IR
Working Temperature-30°C to 65°C (-22°F to 149°F)
Working Humidity≤ 90%
