HD Cameras

Hikvision 5 MP Audio Fixed Mini Bullet Camera Smart IR, up to 25 m IR Distance

Model DS-2CE16H0T-ITPFS
  1. All Products
  2. All Products
  3. Hikvision 5 MP Audio Fixed Mini Bullet Camera Smart IR, up to 25 m IR Distance
End User

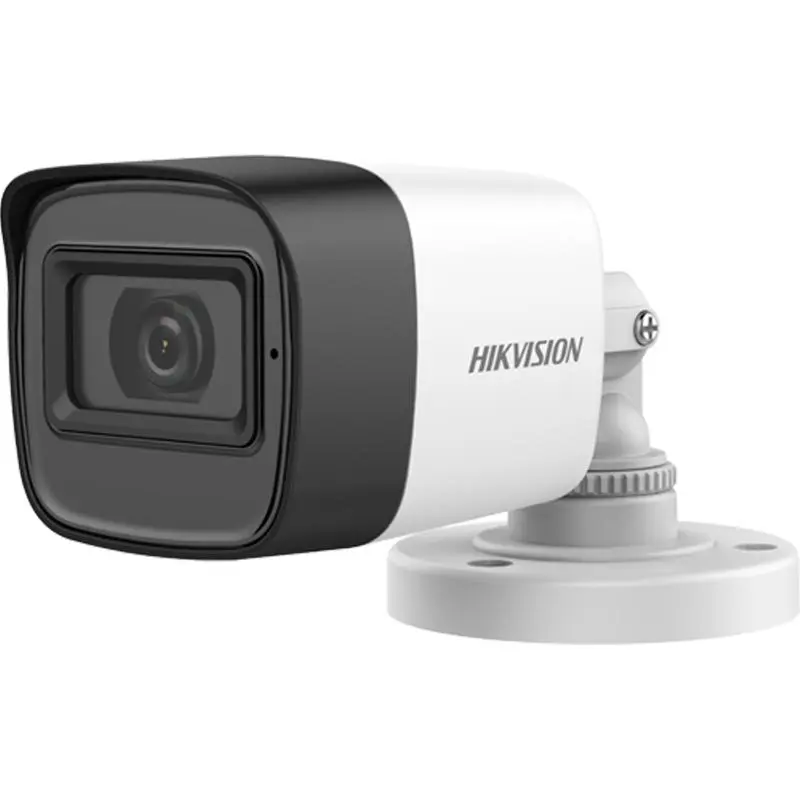

Hikvision 5 MP Audio Fixed Mini Bullet Camera Smart IR, up to 25 m IR Distance
Product Code: DS-2CE16H0T-ITPFS
Hikvision

Hikvision 5 MP Audio Fixed Mini Bullet Camera Smart IR, up to 25 m IR Distance

Hikvision 5 MP Audio Fixed Mini Bullet Camera Smart IR, up to 25 m IR Distance (DS-2CE16H0T-ITPFS) is a Analog HD Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/193/image_1920?unique=ab53d55
DS-2CE16H0T-ITPFS
  • 5 MP, 2560 × 1944 resolution
  • Digital WDR
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Smart IR, up to 25 m IR distance
  • Audio over coaxial cable, built-in mic
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
HD Cameras
HD Cameras

This combination does not exist.

  • HD Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2CE16H0T-ITPFS

Technical Specifications

ModelDS-2CE16H0T-ITPFS
Camera
Image Sensor5 MP CMOS
Max. Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens MountM12
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Image EnhancementBLC
Noise Reduction2D DNR
White BalanceATW/MANUAL
AGCSupport
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
Dimension58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
CommunicationHIKVISION-C
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 3.7 W
IR RangeUp to 25 m
