Product Code:
iDS-7208HQHI-M1/XT

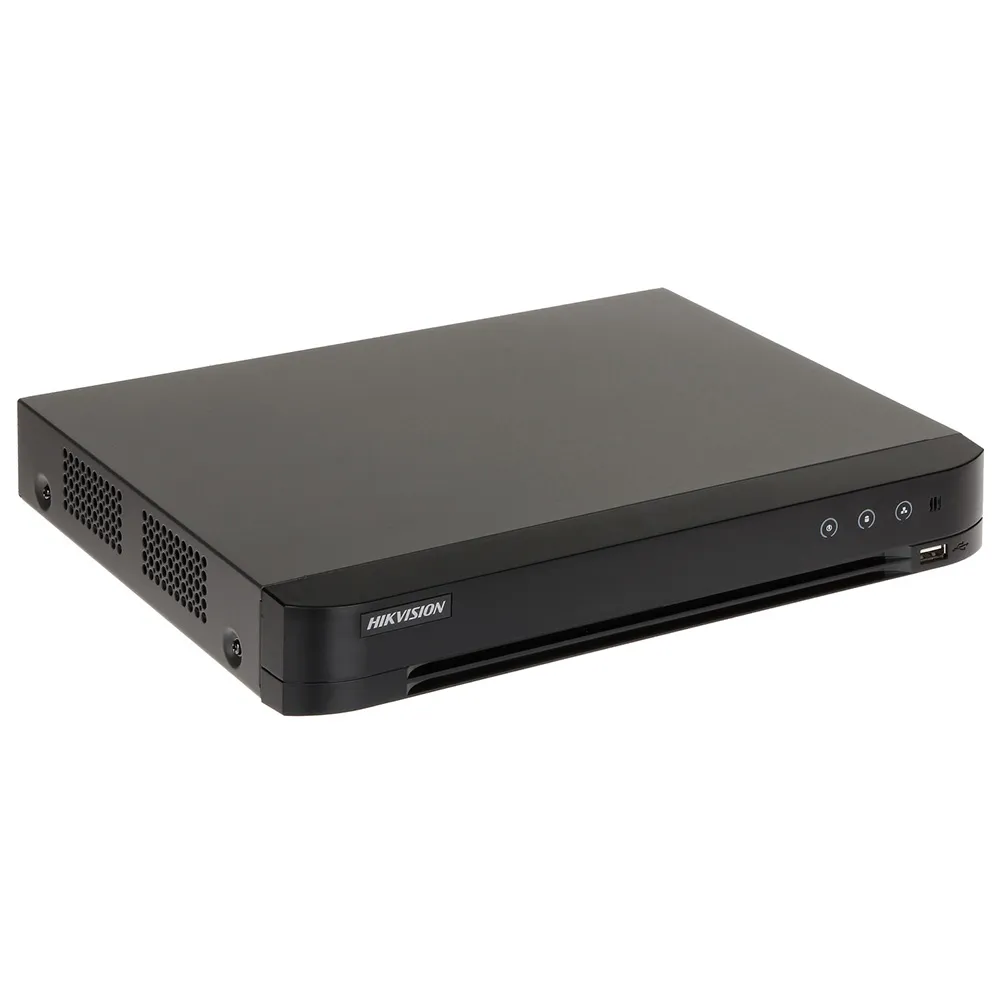

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR Support Two-Way Audio Technology
Hikvision 8-ch 1080p 1U H.265 AcuSense DVR Support Two-Way Audio Technology (iDS-7208HQHI-M1/XT) is a Digital Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
iDS-7208HQHI-M1/XT
- 8 channels and 1 HDD 1U AcuSense DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5M Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 -ch network cameras can be connected
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
General
| Model | iDS-7208HQHI-M1/XT |
|---|
Technical Specifications
| Model | iDS-7208HQHI-M1/XT |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable. |
| Target Recognition | |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison (Captured from Camera) | Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights / Quick search by object or event type is supported |
| Video and Audio | |
| IP Video Input | 4-ch (up to 12-ch), Up to 6 MP resolution |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Input | 8-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable / 4-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable / 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 8-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF / When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps / 4 MP lite/1080p@15fps / 720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps / 720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps / 720p/WD1/4C |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Remote Connection | 64 |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| Serial Interface | RS-485 (half-duplex) |
| SATA | 1 SATA interface, up to 10 TB capacity for each disk |
| Alarm In/Out | 8/4 / N/A (optional to support) / 4/1 |
| USB Interface | Front panel: 1 × USB 2.0 / Rear panel: 1 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 18 W (without HDD) |
| Working Temperature | -10 °C to + 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) |
