Hikvision 8-ch 5MP 1U H.265 1-HDD AcuSense DVR

Model iDS-7208HUHI-M1/T
  1. All Products
  2. DVRs
  3. Hikvision 8-ch 5MP 1U H.265 1-HDD AcuSense DVR
End User
Product Code: iDS-7208HUHI-M1/T
Hikvision

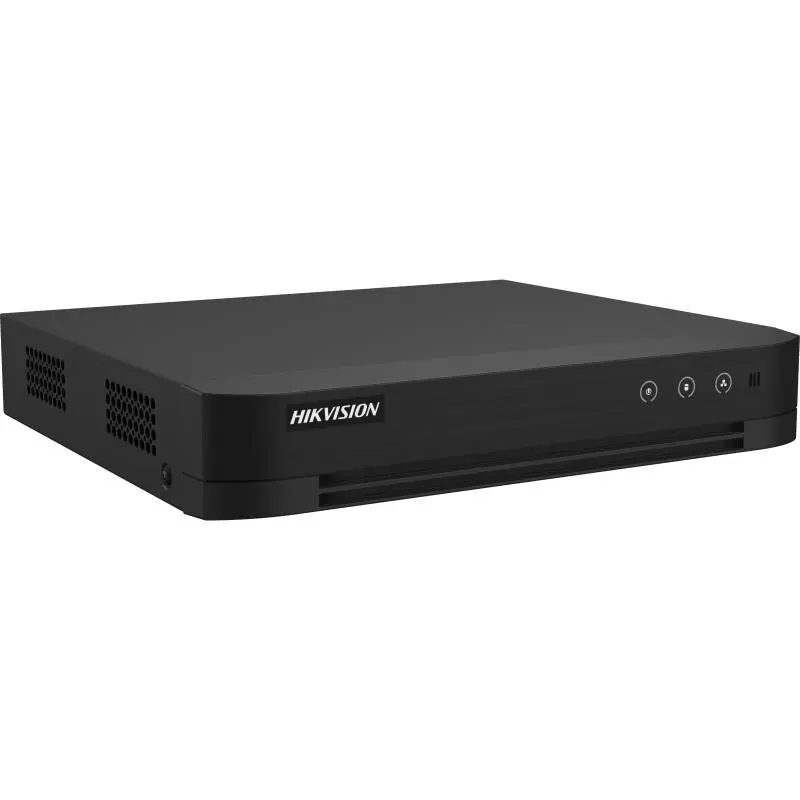

Hikvision 8-ch 5MP 1U H.265 1-HDD AcuSense DVR

Hikvision 8-ch 5MP 1U H.265 1-HDD AcuSense DVR (iDS-7208HUHI-M1/T) is a Digital Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/1807/image_1920?unique=ab53d55
iDS-7208HUHI-M1/T

  • 8 channels and 1 HDD 1U AcuSense DVR
  • Support 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
  • Up to 16 channels IP camera inputs, each channel up to 8MP
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology

This combination does not exist.

  • DVRs
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model iDS-7208HUHI-M1/T

Technical Specifications

ModeliDS-7208HUHI-M1/T
Perimeter Protection
Line Crossing Detection/Intrusion DetectionUp to 4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Motion Detection 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported.
Video and Audio
IP Video Input4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input8-ch / BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304 x 1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
CVBS InputPAL/NTSC
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback8-ch
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/2K/1080p/720p/WD1/4CIF/VGA/CIF
Frame RateMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps/2K@20 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Network
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection64
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
General
Power Supply12 VDC, 2 A
Consumption≤ 15 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
