Huawei eKitEngine S310-24ST4X Managed Switch, 24 x GE SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+

Model S310-24ST4X
  1. All Products
  2. All Products
  3. Huawei eKitEngine S310-24ST4X Managed Switch, 24 x GE SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+
End User
Product Code: S310-24ST4X

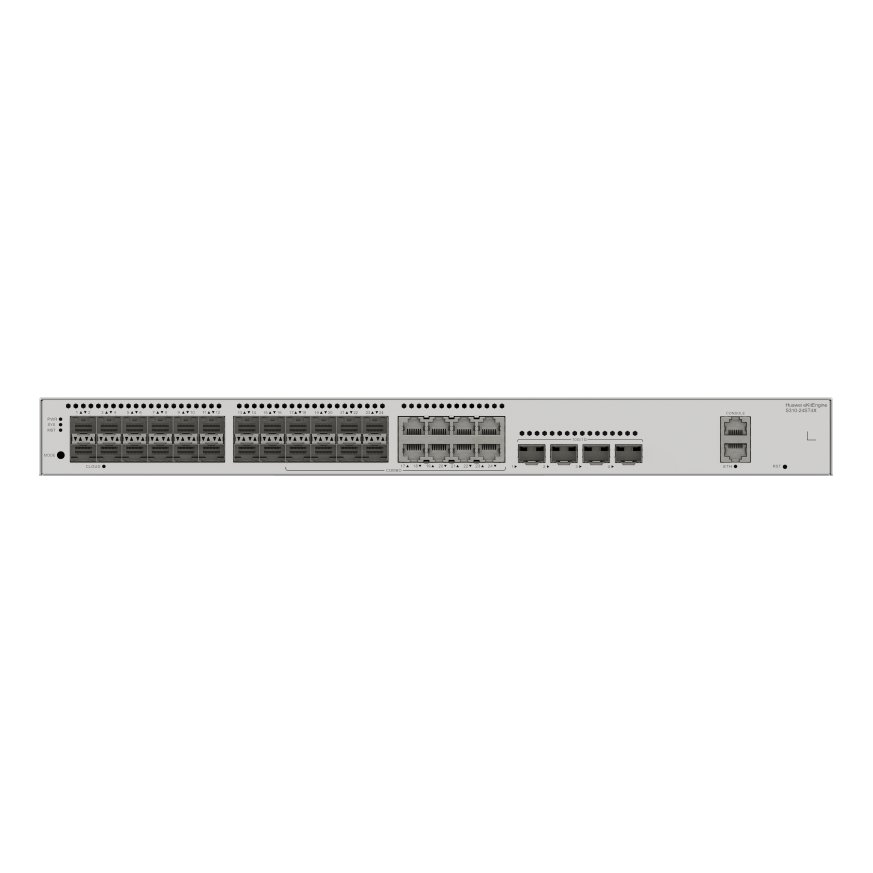

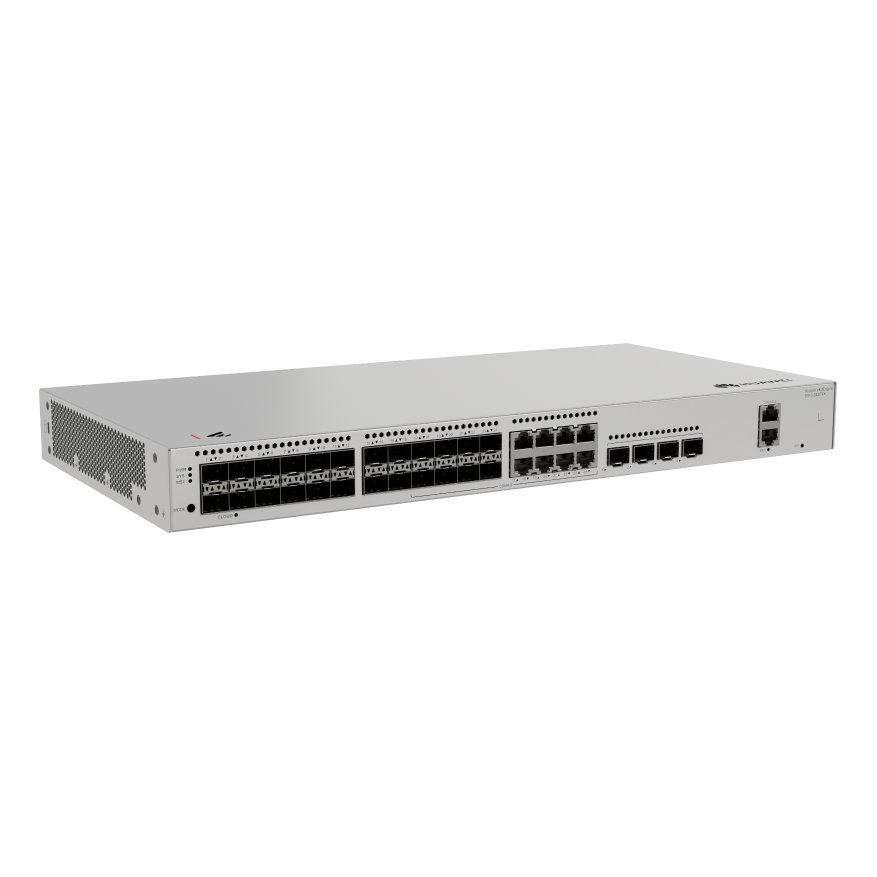

Huawei eKitEngine S310-24ST4X Managed Switch, 24 x GE SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+

Huawei eKitEngine S310-24ST4X Managed Switch, 24 x GE SFP, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/2764/image_1920?unique=d840bf2

A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.

  • 24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports
  • built-in AC power
  • Packet forwarding rate: 96 Mpps
  • Switching capacity: 128 Gbit/s

This combination does not exist.

  • Switches
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model S310-24ST4X

Key Features

  • 24 x GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports
  • built-in AC power
  • Packet forwarding rate: 96 Mpps
  • Switching capacity: 128 Gbit/s

Best Fit Applications

Access and aggregation layers for offices, CCTV projects, hotels and campuses.

Technical Specifications

ModelS310-24ST4X
Part Number98012532
Switching capacity128 Gbit/s
Packet forwarding rate96 Mpps
GE SFP16 (1G/100M)
GE Combo (RJ45 + SFP)8 (RJ45: 1G/100M/10M) (SFP: 1G/100M)
10G SFP+4 (10G/1G)
iStackUp to 4 switches of the same series in a stack
CertificationEMC certification Safety certification Manufacturing certification
Static power consumption [W]17.57
Dimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x…
Dimensions with packaging (H x W x D) [mm(in.)]90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation typeRack mounting, Desk mounting, Wall mounting
Weight without packaging [kg(lb)]2.9 kg (6.39 lb)
Weight with packaging [kg(lb)]3.55 kg (7.83 lb)
Typical power consumption [W]32.6
Maximum power consumption [W]41.7
Number of fans modules2
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensing
Power supply modeAC built-in
Input voltage range [V]- AC input: 90 V AC to 264 V AC; 47 Hz to 63 Hz - High-voltage DC input: 88 V DC to 300 V DC
Power supply surge protection [kV]Differential mode: ±6 kV; common mode: ±6 kV
Types of fansBuilt-in
Heat dissipation modeAir cooling for heat dissipation, intelligent fan speed adjustment
Airflow directionAir intake from left and front, air exhaustion from right
