Switchs

Huawei eKitEngine S310-24T8J4X Managed Switch, 24 x GE, 8 x 2.5GE SFP, 4 x 10GE SFP+, 2 x 10GE stack

Model S310-24T8J4X
  1. All Products
  2. All Products
  3. Huawei eKitEngine S310-24T8J4X Managed Switch, 24 x GE, 8 x 2.5GE SFP, 4 x 10GE SFP+, 2 x 10GE stack
End User
Product Code: S310-24T8J4X

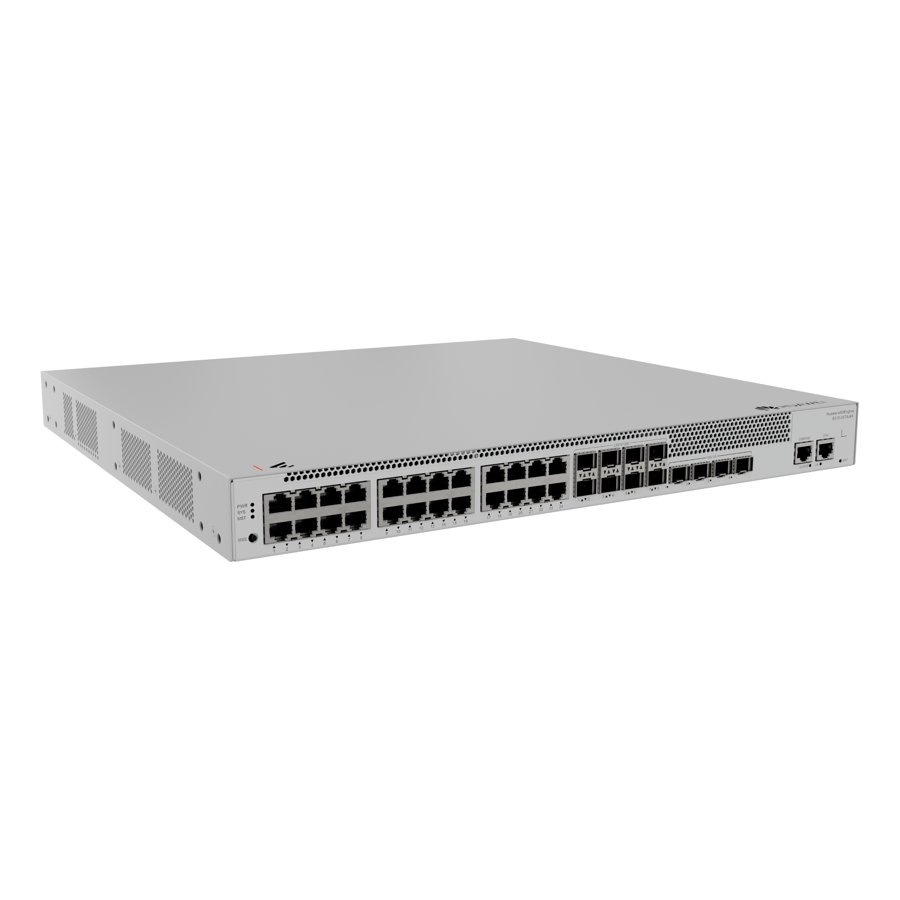

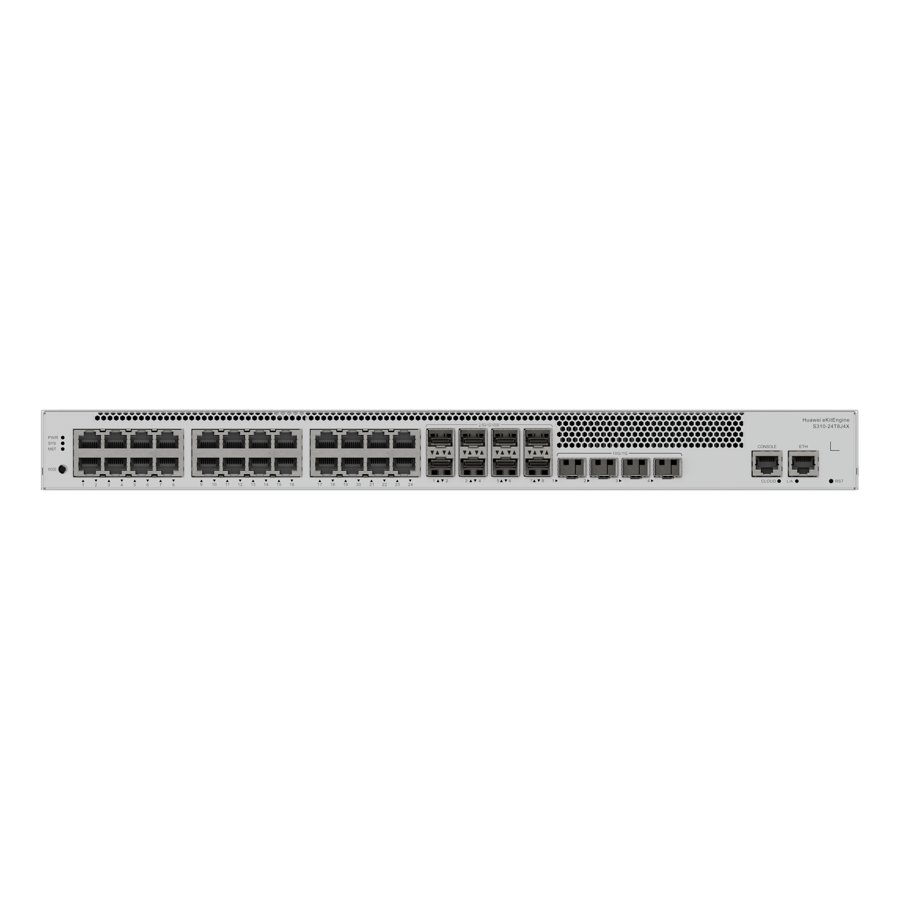

Huawei eKitEngine S310-24T8J4X Managed Switch, 24 x GE, 8 x 2.5GE SFP, 4 x 10GE SFP+, 2 x 10GE stack

Huawei eKitEngine S310-24T8J4X Managed Switch, 24 x GE, 8 x 2.5GE SFP, 4 x 10GE SFP+, 2 x 10GE stack is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/2765/image_1920?unique=d840bf2

A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.

  • 24 x 10/100/1000BASE-T ports, 8 x 2.5GE SFP ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports
  • Packet forwarding rate: 125 Mpps
  • Switching capacity: 168 Gbit/s

This combination does not exist.

  • Switches
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model S310-24T8J4X

Key Features

  • 24 x 10/100/1000BASE-T ports, 8 x 2.5GE SFP ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports
  • Packet forwarding rate: 125 Mpps
  • Switching capacity: 168 Gbit/s

Best Fit Applications

Access and aggregation layers for offices, CCTV projects, hotels and campuses.

Technical Specifications

ModelS310-24T8J4X
Part Number98012570
Switching capacity168 Gbit/s
Packet forwarding rate125 Mpps
GE RJ4524 (1G/100M/10M)
2.5G SFP8 (2.5G/1G/100M)
10G SFP+4 (10G/1G)
iStackUp to 4 switches of the same series in a stack
CertificationEMC certification Safety certification Manufacturing certification
Chassis materialMetal
Static power consumption [W]22.26
Dimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm…
Dimensions with packaging (H x W x D) [mm(in.)]185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Installation typeRack mounting, Desk mounting
Weight without packaging [kg(lb)]4.13 kg (9.1 lb)
Weight with packaging [kg(lb)]6.57 kg (14.48 lb)
Typical power consumption [W]39.18
Maximum power consumption [W]49.52
Number of fans modules2
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensing
Power supply modeAC built-in
Input voltage range [V]- AC input: 90 V AC to 264 V AC; 47–63 Hz - High-voltage DC input: 88 V DC to 300 V DC
Power supply surge protection [kV]Differential mode: ±6 kV; common mode: ±6 kV
Types of fansBuilt-in
Heat dissipation modeAir cooling for heat dissipation, intelligent fan speed adjustment
Airflow directionAir intake from left and front, air exhaustion from right
