Huawei eKitEngine S310-24U4X Managed Switch, 24 x GE PoE++, 4 x 10GE SFP+

Model S310-24U4X
  1. All Products
  2. Switchs
  3. Huawei eKitEngine S310-24U4X Managed Switch, 24 x GE PoE++, 4 x 10GE SFP+
End User
Product Code: S310-24U4X

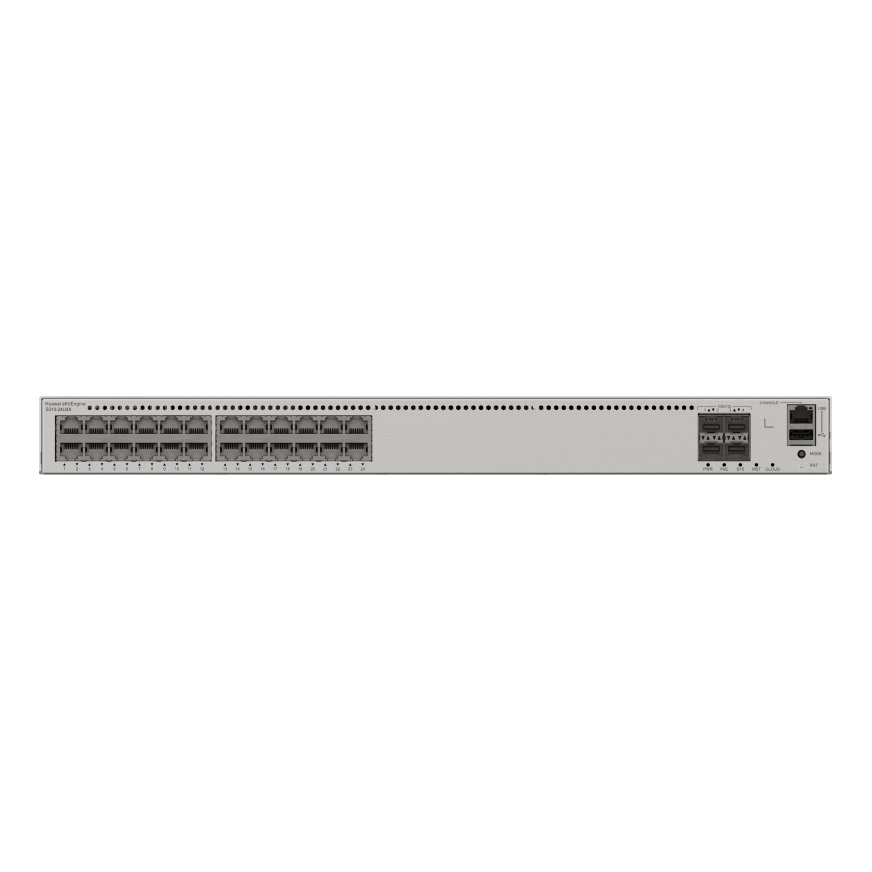

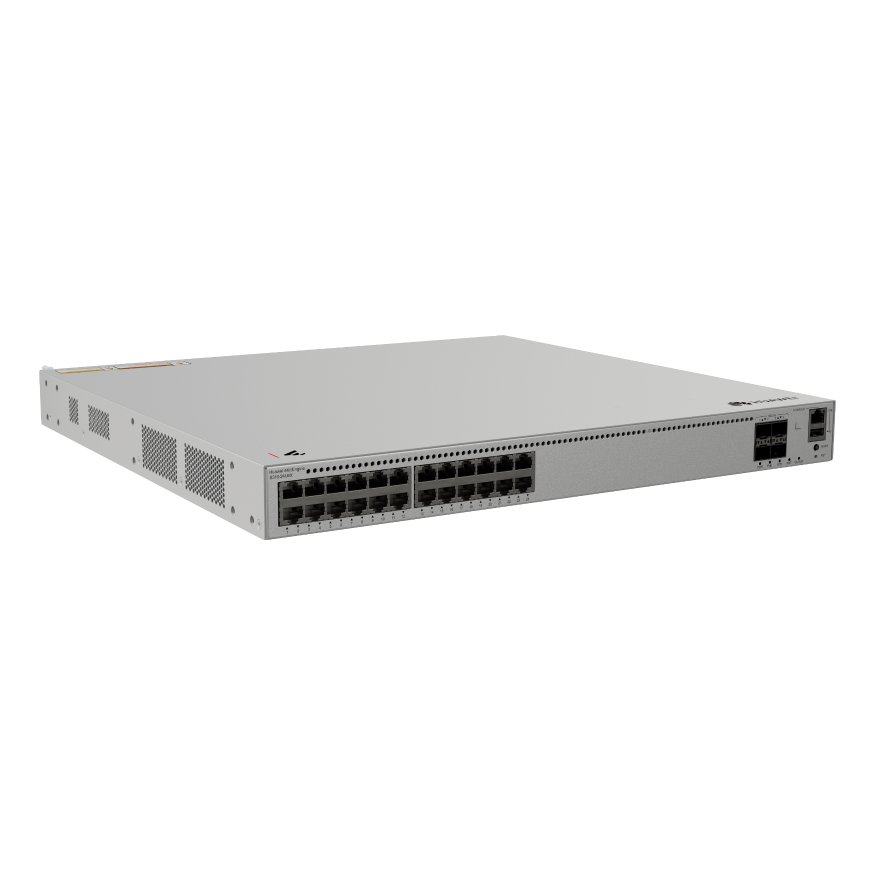

Huawei eKitEngine S310-24U4X Managed Switch, 24 x GE PoE++, 4 x 10GE SFP+

Huawei eKitEngine S310-24U4X Managed Switch, 24 x GE PoE++, 4 x 10GE SFP+ is a Network Switch product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/2766/image_1920?unique=d840bf2

A Huawei eKit enterprise switch for reliable wired networks in offices, CCTV and Wi-Fi projects, hotels and campuses.

  • 24 x 10/100/1000BASE-T PoE++ ports, 4 x 10GE SFP+ ports
  • AC power supply
  • PoE 2268 W
  • Packet forwarding rate: 95 Mpps
  • Switching capacity: 128 Gbit/s

This combination does not exist.

  • Switches
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model S310-24U4X

Key Features

  • 24 x 10/100/1000BASE-T PoE++ ports, 4 x 10GE SFP+ ports
  • AC power supply
  • PoE 2268 W
  • Packet forwarding rate: 95 Mpps
  • Switching capacity: 128 Gbit/s

Best Fit Applications

Access and aggregation layers for offices, CCTV projects, hotels and campuses.

Technical Specifications

ModelS310-24U4X
Part Number98012947
Switching capacity128 Gbit/s
Packet forwarding rate95 Mpps
GE RJ4524 (PoE++) (1G/100M/10M)
10G SFP+4 (10G/1G)
PoESupported
Maximum PoE power consumption [W]Single-power module scenario: Single 600 W AC power module: 513 W (220 V AC); 228 W (110 V AC) Single 1000 W AC power module: 846 W (220 V AC); 756 W (110 V AC) Single 1000 W DC power module: 846 W (56 V DC) Dual-power module scenario: 600 W AC power module +…
iStackUp to 4 switches of the same series in a stack
CertificationEMC certification Safety certification Manufacturing certification
Chassis materialMetal
Static power consumption [W]28.8
Dimensions without packaging (H x W x D) [mm(in.)]Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm…
Dimensions with packaging (H x W x D) [mm(in.)]185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Installation typeRack mounting, Desk mounting
Weight without packaging [kg(lb)]5.92 kg (13.05 lb)
Weight with packaging [kg(lb)]7.99 kg (17.61 lb)
Typical power consumption [W]36.98
Maximum power consumption [W]- Without PoE: 51.60 W (with two 600 W AC power modules) 54.70 W (with two 1000 W AC power modules) 65.30 W (with two 1000 W DC power modules) - Full PoE load: 2428.11 W (PoE: 2268 W, with three 1000 W AC power modules)
Number of fans modules2
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-term operating relative humidity [RH]5% RH to 95% RH, non-condensing
Power supply modePluggable power supply
Input voltage range [V]- AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Power supply surge protection [kV]- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fansBuilt-in
Heat dissipation modeAir cooling for heat dissipation, intelligent fan speed adjustment
Airflow directionAir intake from left, front, and right and air exhaust from rear
