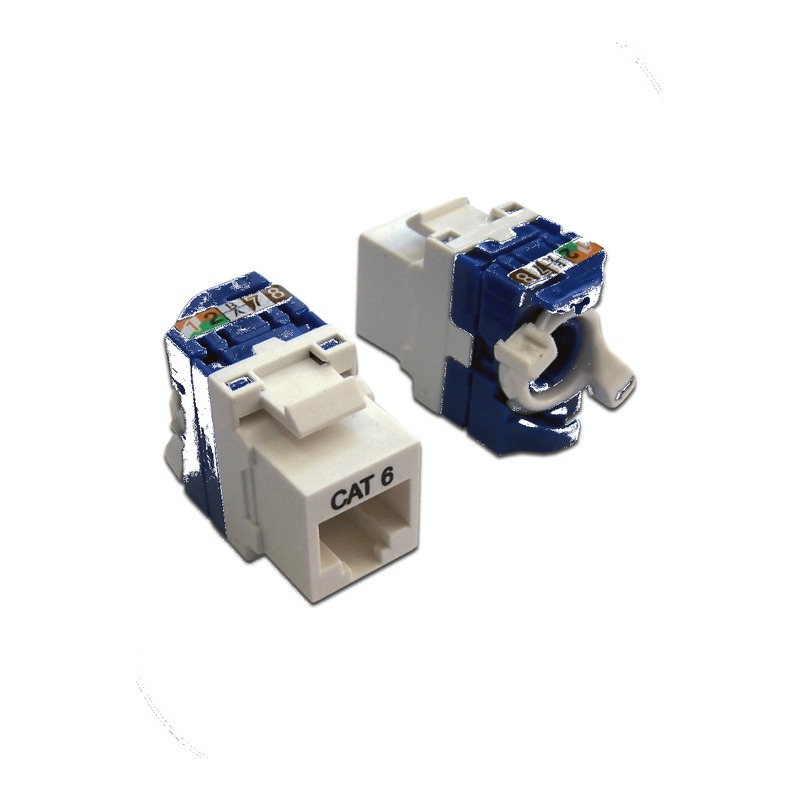

Premium Line 106124015 Cat6 180° Unshielded Toolless Keystone Jack with Rotation Locking
Premium Line 106124015 Cat6 180° Unshielded Toolless Keystone Jack with Rotation Locking is a Passive Network Component product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
وحدة Keystone من Premium Line فئة Cat6 غير مدرعة بزاوية 180° تُركّب بدون أدوات مع قفل دوّار، فتُوصّل الكابلات يدوياً دون أداة تثبيت؛ لموصلات مصمتة 22-26 AWG، بنظامي التوصيل T568A و T568B.
- وحدة Keystone Cat6 غير مدرعة، 250 ميجاهرتز
- توصيل IDC بدون أدوات مع قفل دوّار، دون الحاجة إلى أداة تثبيت
- لموصلات مصمتة 22-26 AWG، بنظامي التوصيل T568A و T568B
- نقاط تلامس من البرونز الفوسفوري مطلية بالذهب 50 ميكرو بوصة
- هيكل PC بتصنيف UL94 V-0، متوافق مع RoHS
General
| Model | 106124015 |
|---|
Key Features
- Keystone jack Cat6 UTP, 250 MHz
- Tool-less IDC with rotation locking, no punch-down tool
- 22-26 AWG solid conductors, T568A / T568B wiring
- Phosphor bronze contacts, 50μ inch gold plated
- Housing PC UL94 V-0, RoHS compliant
Best Fit Applications
Wall outlets, face plates and patch panels in structured cabling.
Technical Specifications
| Brand | Premium Line |
|---|---|
| Part number | 106124015 |
| Category | Cat6 UTP, 250 MHz |
| Termination | Tool-less IDC with rotation locking, no punch-down tool |
| Conductor | 22-26 AWG solid |
| Wiring | T568A / T568B |
| Contacts | Phosphor bronze, 50μ inch gold plated |
| Housing | PC, UL94 V-0 |
| Operating temperature | -10 ~ 60 °C |
