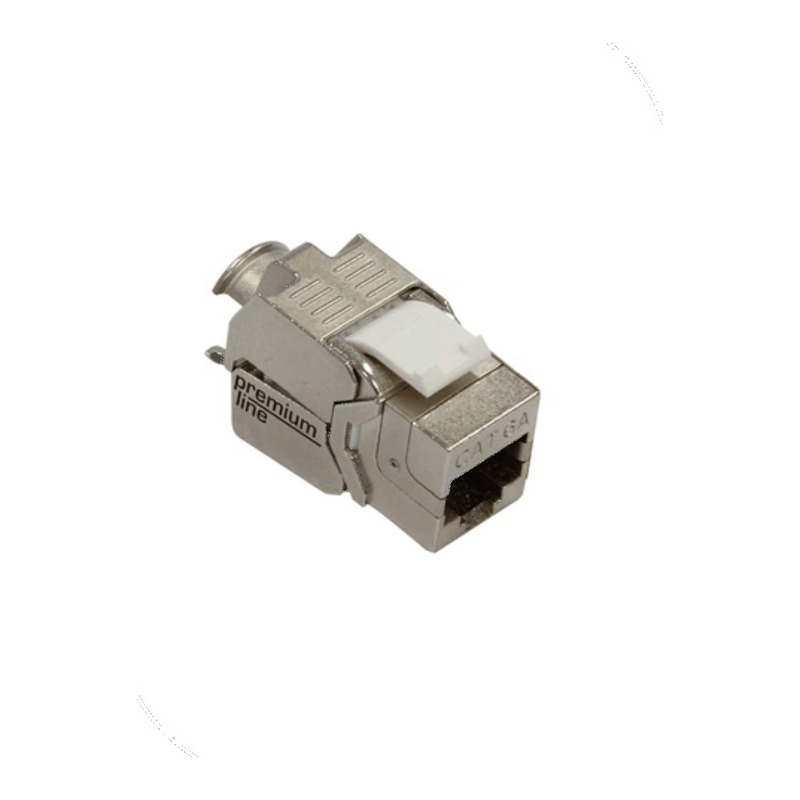

Premium Line 109824010 Category 6A 180° Shielded Die-casting Keystone Jack, Slim Type
Premium Line 109824010 Category 6A 180° Shielded Die-casting Keystone Jack, Slim Type is a Passive Network Component product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
وحدة Keystone من Premium Line فئة Cat6A مدرعة بهيكل معدني مصبوب بزاوية 180° بتصميم نحيف وغطاء واقٍ، فئة Class EA للكابلات المدرعة 10 جيجابت واللوحات عالية الكثافة؛ لموصلات مصمتة 22-26 AWG، بنظامي التوصيل T568A و T568B.
- وحدة Keystone Cat6A مدرعة، Class EA بتردد 500 ميجاهرتز
- هيكل معدني مدرع مصبوب، تصميم نحيف بغطاء واقٍ
- لموصلات مصمتة 22-26 AWG، بنظامي التوصيل T568A و T568B
- نقاط تلامس من البرونز الفوسفوري مطلية بالذهب 50 ميكرو بوصة
- هيكل PC بتصنيف UL94 V-0، متوافق مع RoHS
General
| Model | 109824010 |
|---|
Key Features
- Keystone jack Cat6A shielded, Class EA 500 MHz
- Die-cast metal shielded body, slim type with shutter
- 22-26 AWG solid conductors, T568A / T568B wiring
- Phosphor bronze contacts, 50μ inch gold plated
- Housing PC UL94 V-0, RoHS compliant
Best Fit Applications
Wall outlets, face plates and patch panels in structured cabling.
Technical Specifications
| Brand | Premium Line |
|---|---|
| Part number | 109824010 |
| Category | Cat6A shielded, Class EA 500 MHz |
| Termination | Die-cast metal shielded body, slim type with shutter |
| Conductor | 22-26 AWG solid |
| Wiring | T568A / T568B |
| Contacts | Phosphor bronze, 50μ inch gold plated |
| Housing | PC, UL94 V-0 |
| Operating temperature | -10 ~ 60 °C |
