Access Control

ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi

Model F22
  1. All Products
  2. All Products
  3. ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi
End User
Product Code: F22
ZKTeco

ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi

ZkTeco Fingerprint T&A and Access Control Terminal with Wi-Fi (F22) is a Access Control Device product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/325/image_1920?unique=ab53d55
F22

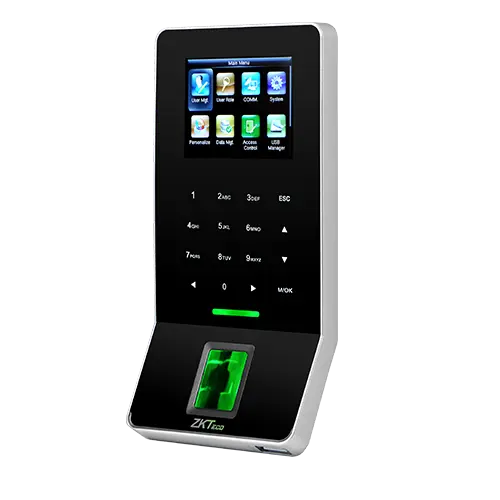

The ZKTeco F22 is an ultra-thin, biometric terminal used for time attendance and access control. It features a BioID fingerprint sensor, a 2.4-inch color LCD screen, and a touch keypad. The device is designed for easy installation and is suitable for various applications, including offices, factories, and other institutions.
Features and functions
  • Sensor: High-performance, high-image quality infrared detection fingerprint sensor. It uses an advanced algorithm for fast, precise, and reliable matching speed.
  • Communication: Connects via Wi-Fi, TCP/IP, USB host, or RS485.
  • Access control: Includes a full range of access control features such as an anti-passback function and an interface to connect with a third-party electric lock, door sensor, exit button, or alarm. It can operate as a standalone device or be connected to a separate access control panel that supports a standard Wiegand signal.
  • Time attendance: Records employee attendance via fingerprint or optional RFID/IC cards. The device's capabilities include an automatic status switch, scheduled bell, and record query.
  • Software: Compatible with ZKTeco's ZKBioAccess software, which can generate reports for time attendance, including work shifts, overtime, and late arrivals.
  • Display: Features a 2.4-inch TFT LCD color screen and sensitive touch keypad for a superior user experience.
Specifications
According to the official specifications provided by ZKTeco:
  • Dimensions: 158.5 x 78.0 x 19.4 mm (L x W x H).
  • Fingerprint capacity: 3,000 templates.
  • Card capacity: 5,000 (optional ID or IC cards).
  • Transaction capacity: 30,000 logs.
  • Power supply: 12V DC, 3A.
  • Operating temperature: 0 °C to 45 °C.
  • Operating humidity: 20% to 80%.

This combination does not exist.

  • Access Control
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model F22

Technical Specifications

ModelF22
Specifications
Display2.4-inch TFT LCD Color Screen
Fingerprint Capacity (optional)3,000
Card Capacity5000(Optional) ID or Mifare card
Transaction Capacity30,000
SensorZ-ID Sensor
Algorithm VersionZKFinger V10.0
CommunicationRS232*, RS485*, TCP / IP, USB-host, Wi-Fi
Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand SignalInput, Output
Aux. Input1ea for linkage function
FunctionsDST, Automatic Status Switch (Optional), Record query, T9 input,14 digit user ID (Optional), Anti-passback, Scheduled-Bell, Printer(Optional), ADMS
Power Supply12V DC, 3A
Operating Temperature0 °C - 45 °C
Operating Humidity20% - 80%
Dimension158.5 x 78.0 x 19.4mm (LxWxH)
SDK and SoftwareStandalone SDK, ZKBio Access IVS
