Product Code:
DS-7616NXI-I2/16P/S

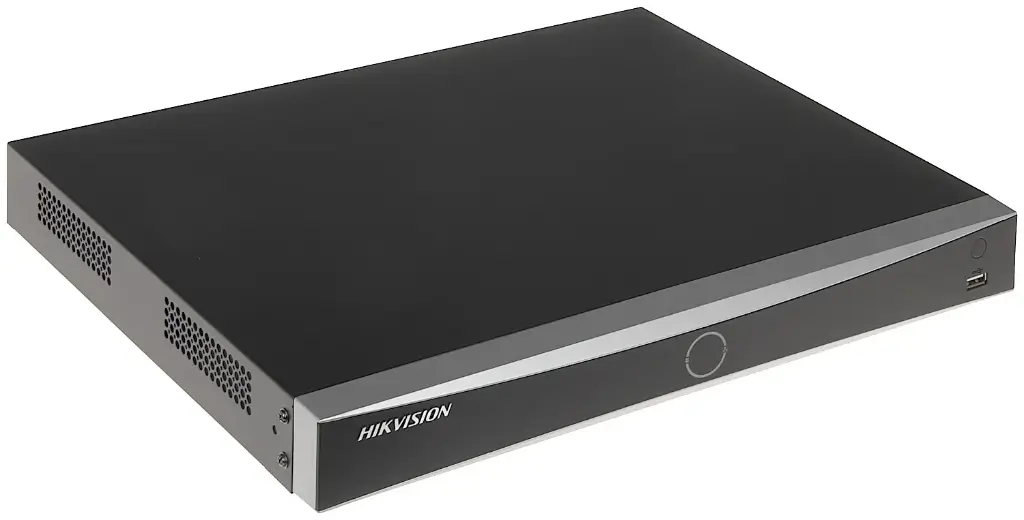

Hikvision 2HDD 16-ch PoE 1U AcuSense 4K NVR
Hikvision 2HDD 16-ch PoE 1U AcuSense 4K NVR (DS-7616NXI-I2/16P/S) is a Network Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.
DS-7616NXI-I2/16P/S
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 16-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
- Up to 2 SATA interfaces for HDD connection
General
| Model | DS-7616NXI-I2/16P/S |
|---|
Technical Specifications
| Model | DS-7616NXI-I2/16P/S |
| Intelligent Analytics | |
| AI by NVR | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
| Engine | 1, engine mode is adjustable |
| Perimeter Protection | |
| By NVR | 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm / Up to 12 rules in total |
| Target Recognition | |
| Face Picture Library | Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) |
| Face Picture Comparison | 4-ch face picture comparison alarm |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection and Analytics Performance | 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
| Motion Detection 2.0 | |
| By NVR | All channels for Hikvision cameras |
| ANPR | |
| By Camera | All channels Support Countries & Regions: 1. Myanmar, Philippines, Indonesia, Vietnam, Pakistan, New Zealand, Australia, Sri Lanka, Singapore, Malaysia 2. Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, S |
| Vehicle Attributes | Vehicle brand, vehicle color, vehicle type |
| Plate Attributes | Plate number, license plate color, license plate type |
| Video and Audio | |
| IP Video Input | 16 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding | |
| Decoding Format | H.265,H.265+,H.264,H.264+,MPEG4 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Live View Window Division | 1/4/6/8/9/16 |
| Aux Port Window Division | 1/4/6/8/9/16 |
| Decoding Capability | 16-ch @ 1080p (30 fps) |
| Audio Compression | G.711ulaw,G.711alaw,G.722,G.726,MP2L2 |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Network | |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| API | ONVIF (profile S/G) / SDK / ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex), RS-232, Keyboard |
| Alarm In/Out | 4/1 |
| USB Interface | Front panel: 1 × USB 2.0 / Rear panel: 1 × USB 3.0 |
| General | |
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serb |
| Power Supply | ≤ 280 W |
| Consumption | ≤ 15W |
| Working Temperature | -10℃～＋55℃ |
| Working Humidity | 10% to 90% |
| Chassis | 1U |
| Dimension (W × D × H) | 385 × 315 ×52 mm ( 11.6"× 9.5" × 1.6") |
| Cyber Security | |
| HTTPS Encryption | Support |
