IP Cameras

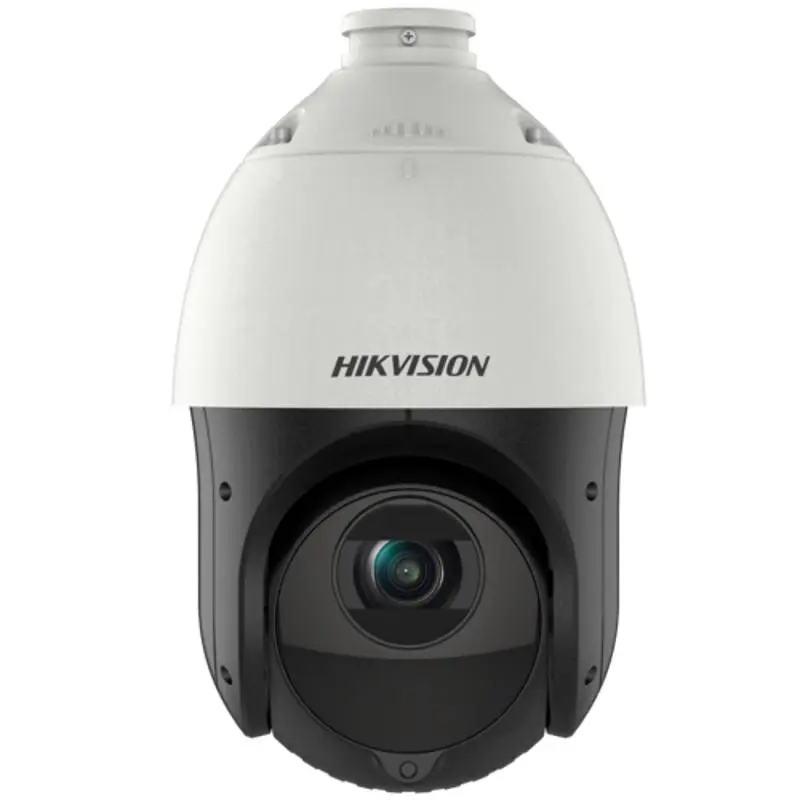

Hikvision 4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome Up To 100m IR Distance

Model DS-2DE4425IW-DE(T5)
  1. All Products
  2. All Products
  3. Hikvision 4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome Up To 100m IR Distance
End User
Product Code: DS-2DE4425IW-DE(T5)
Hikvision

Hikvision 4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome Up To 100m IR Distance

Hikvision 4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome Up To 100m IR Distance (DS-2DE4425IW-DE(T5)) is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/379/image_1920?unique=ab53d55
DS-2DE4425IW-DE(T5)

  • Focuses on human and vehicle targets classification based on deep learning
  • Support face capture. Up to 5 faces captured at the same time
  • 1/2.8" progressive scan CMOS
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Expansive night view with up to 100 m IR distance
  • Support H.265+/H.265 video compression

This combination does not exist.

  • IP Cameras
  • PTZ Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2DE4425IW-DE(T5)

Technical Specifications

ModelDS-2DE4425IW-DE(T5)
Camera
Image Sensor1/2.8" progressive scan CMOS
Min. Illuminationcolor: 0.005Lux @ (F1.6，AGC ON) / B/W: 0.001Lux @ (F1.6，AGC ON) / 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Focussemi-auto / manual / auto
Day & NightICR
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISno
Regional Exposureyes
Regional Focusyes
Image Settingssaturation / brightness / contrast / sharpness
Image Parameters Switchyes
White BalanceMWB / indoor / outdoor / fluorescent lamp / sodium lamp / ATW / auto / Locked WB
Digital Zoom16x
Optical Zoom25x
Privacy Maskup to 24 masks / mask color configurable
SNR＞52dB
Lens
Focal Length4.8 mm to 120 mm, 25× Optical
Zoom Speedapprox. 3.6 s
FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
ApertureF1.6
Illuminator
IR Distance100 m
PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 80°/s / preset speed: 80°/s
Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-off Memoryyes
Park Actionpreset / patrol scan / pattern scan / auto scan / tilt scan / random scan / frame scan / panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset / auto scan / random scan / frame scan / patrol scan / pattern scan / panorama scan / tilt scan / dome reboot / dome adjust / aux output
Video
Max. Resolution2560 × 1440
Stream Typemain stream / sub-stream / third stream
Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265 / H.264 / MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile / main profile / high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIfixed region / main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio CompressionG.711alaw / G.711ulaw / G.722.1 / G.726 / MP2L2 / PCM
Audio Bit rateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz / PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes
Smart Features
Basic Eventmotion detection / alarm input / alarm output / video tampering alarm / exception
Smart Eventintrusion detection / line crossing detection / region entrance detection / region exiting detection / unattended baggage detection / object removal detection / audio exception detection / face detection
Smart RecordANR / Dual-VCA
Alarm Linkagememory card video recording / alarm output / sending email / notify surveillance center / upload to FTP / NAS video recording
Network
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolsIPv4/IPv6 / HTTP / HTTPS / 802.1x / Qos / FTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / TCP/IP / UDP / IGMP / ICMP / DHCP / PPPoE / Bonjour / SMTP / RTCP / RTP / ISUP
APIISAPI / Hikvision SDK / Third-party management platform / Open-ended API / Hik-Connect / ISUP / Open Network Video Interface / CGI
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password / MAC address binding / HTTPS encryption / 802.1X authenticated access / IP address filter
Interface
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board Storagesupport microSD/microSDHC/microSDXC cards / up to 256 GB
Alarm Input1 alarm input
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω
General
Power12 VDC / PoE (802.3at)
Power Consumption and CurrentMax. 18 W, including max. 1.6 W for heater and 9 W for IR
Operating Conditions-30℃ to 65℃ (-22°F to 149°F) / humidity lower than 90%RH
Resetyes
Demistyes
MaterialADC12
DimensionsØ 164.5 mm × 290 mm (Ø 6.48" × 11.42")
