Hikvision 4MP 32X Powered by DarkFighter IR Network Smart Tracking Speed Dome Up To 150m IR Distance

Model DS-2DE5432IWG-E
  1. All Products
  2. All Products
  3. Hikvision 4MP 32X Powered by DarkFighter IR Network Smart Tracking Speed Dome Up To 150m IR Distance
End User
Product Code: DS-2DE5432IWG-E
Hikvision

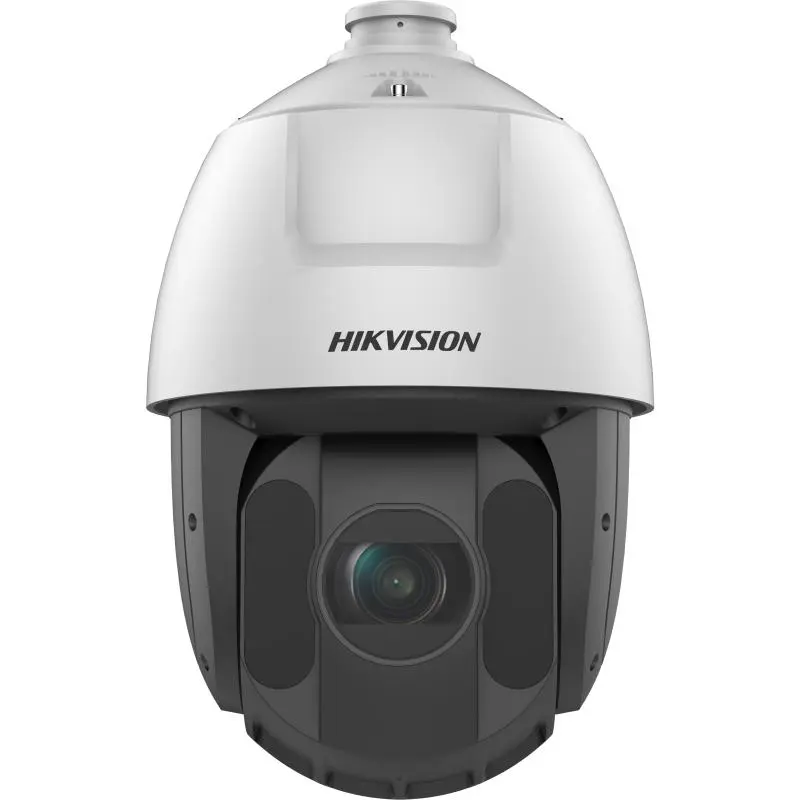

Hikvision 4MP 32X Powered by DarkFighter IR Network Smart Tracking Speed Dome Up To 150m IR Distance

Hikvision 4MP 32X Powered by DarkFighter IR Network Smart Tracking Speed Dome Up To 150m IR Distance (DS-2DE5432IWG-E) is a PTZ Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/380/image_1920?unique=ab53d55
DS-2DE5432IWG-E

  • 1/2.8" Progressive Scan CMOS. High quality imaging with 4 MP resolution
  • Focuses on human and vehicle targets classification based on deep learning
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
  • WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 150 m IR distance
  • 24 VAC & PoE (802.3at)
  • Efficient H.265+/H.265 compression technology

This combination does not exist.

  • IP Cameras
  • PTZ Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2DE5432IWG-E

Technical Specifications

ModelDS-2DE5432IWG-E
Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON) / B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightIR cut filter
Zoom32x optional, 16x digital
Slow ShutterYes
Lens
Focal Length5.9 mm to 188.8 mm
FOVHorizontal field of view: 60.2° to 2.0° (wide-tele), Vertical field of view: 35.2° to 1.1° (wide-tele), Diagonal field of view: 67.4° to 2.3° (wide-tele)
FocusAuto, semi-auto, manual
ApertureMax. F1.5
Zoom SpeedApprox. 5.6 s
Illuminator
Supplement Light TypeIR
Supplement Light RangeIR Distance: up to 150 m
PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 120°/s / preset speed: 120°/s
Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off MemoryYes
Video
Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 576, 640 × 480, 352 × 288)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream
Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes
Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour,WebSocket,WebSockets
Simultaneous Live ViewUp to 20 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/HostUp to 32 users / 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR＞52 dB
DefogDigital Defog
Image StabilizationNo
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes
Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10% / 1 output (line out), line level, output impedance: 600 Ω
Alarm2 inputs, 1 output
ResetYes
Event
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
General
Power24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater) / PoE (802.3at)
DimensionØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
MaterialMetal
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistYes
