IP Cameras

Hikvision 4 MP Varifocal Dome Network Camera

Model DS-2CD1743G0-IZ
  1. All Products
  2. All Products
  3. Hikvision 4 MP Varifocal Dome Network Camera
End User
Product Code: DS-2CD1743G0-IZ
Hikvision

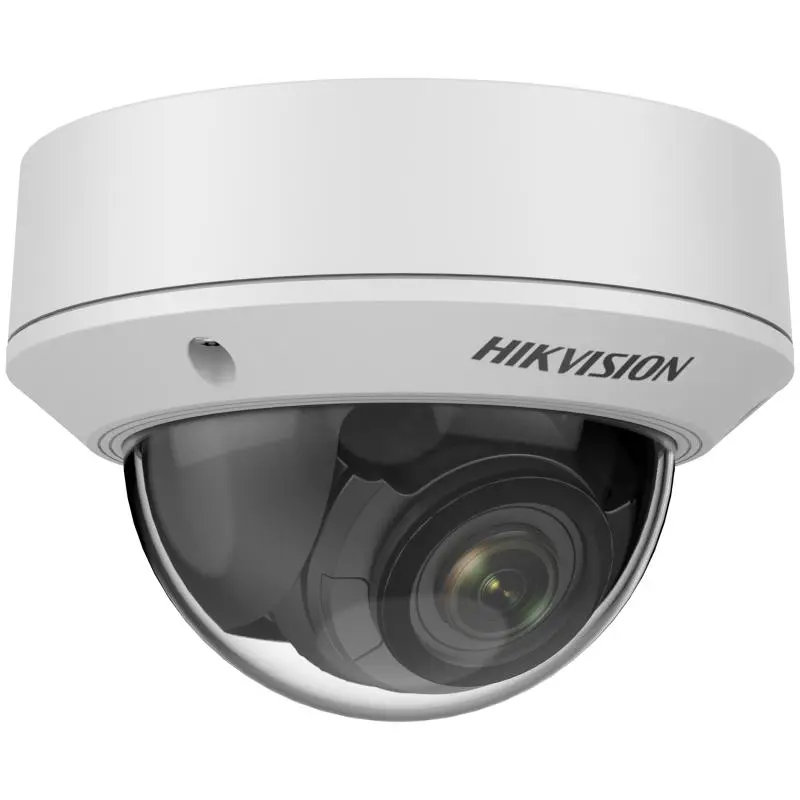

Hikvision 4 MP Varifocal Dome Network Camera

Hikvision 4 MP Varifocal Dome Network Camera (DS-2CD1743G0-IZ) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/294/image_1920?unique=ab53d55
DS-2CD1743G0-IZ

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Up to 256 GB memory card slot for storage
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range

This combination does not exist.

  • IP Cameras
  • Motorized IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2CD1743G0-IZ

Technical Specifications

ModelDS-2CD1743G0-IZ
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
Lens
Lens TypeVarifocal Lens, motoried lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
Illuminator
IR Wavelength850 nm
IR RangeUp to 30 m
Video
Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream
Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA
Reset KeyYes
Event
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Camera MaterialMetal
Camera DimensionØ141 mm × 99.9 mm (Ø5.6" × 3.9")
Camera WeightApprox. 820 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
