Hikvision 4HDD 32-ch With 24-ch PoE 1.5U 4K NVR

Model DS-7732NI-I4/24P
  1. All Products
  2. All Products
  3. Hikvision 4HDD 32-ch With 24-ch PoE 1.5U 4K NVR
End User
Product Code: DS-7732NI-I4/24P
Hikvision

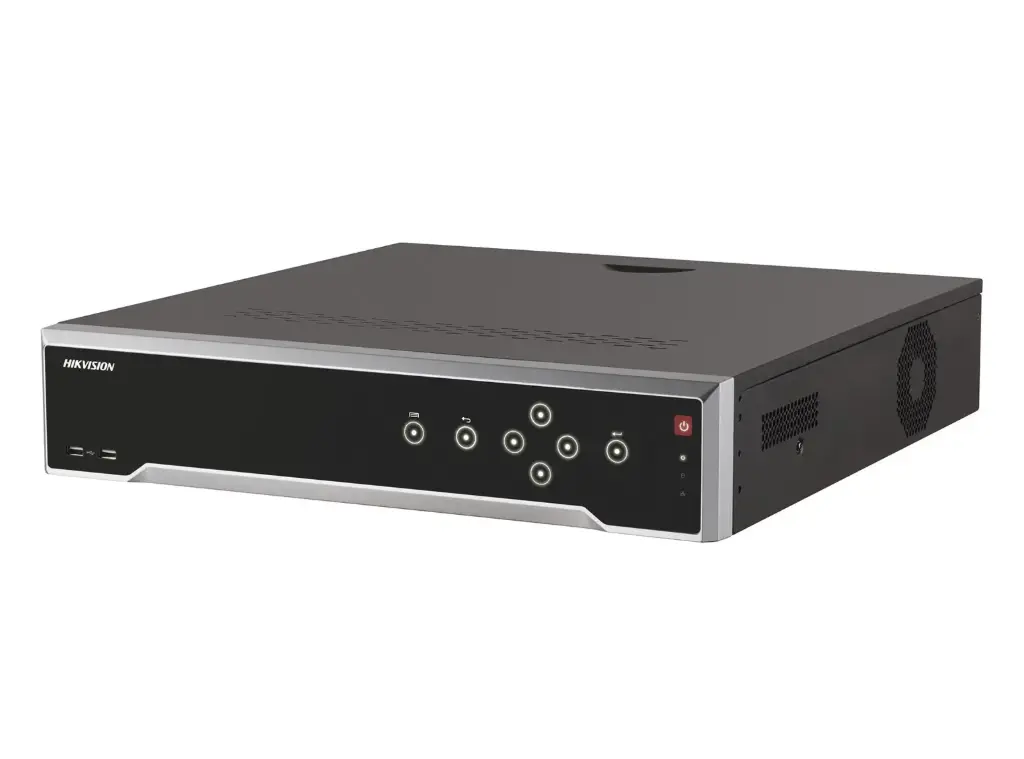

Hikvision 4HDD 32-ch With 24-ch PoE 1.5U 4K NVR

Hikvision 4HDD 32-ch With 24-ch PoE 1.5U 4K NVR (DS-7732NI-I4/24P) is a Network Video Recorder product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/772/image_1920?unique=ab53d55
DS-7732NI-I4/24P

  • Up to 32 channel IP cameras can be connected
  • Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
  • 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
  • 4 HDDs for continuous video recording
  • Plug & Play with 24 Power-over-Ethernet (PoE) interfaces
  • Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • Supports dual-stream recording to save time and bandwidth
  • Up to 8-ch IP speakers can be connected
  • Up to 4 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)

This combination does not exist.

  • NVRs
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-7732NI-I4/24P

Technical Specifications

ModelDS-7732NI-I4/24P
Video and Audio
IP Video Input32-ch Up to 12 MP resolution
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Outgoing Bandwidth256 Mbps
VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth320 Mbps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
Decoding Capability2-ch@12 MP (20 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Synchronous Playback16-ch
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Remote Connection128
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP
PoE
Interface24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 210 W
StandardIEEE 802.3 af/at
Auxiliary Interface
SATA4 SATA interfaces
eSATA1 eSATA interface
CapacityUp to 16 TB capacity for each disk
Serial Interface1 RS-485 (half-duplex), 1 RS-232
USB InterfaceFront panel: 2 × USB 2.0 / Rear panel: 1 × USB 3.0
Alarm In/Out16/4 (16/8 optional)
General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 20 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
