IP Cameras

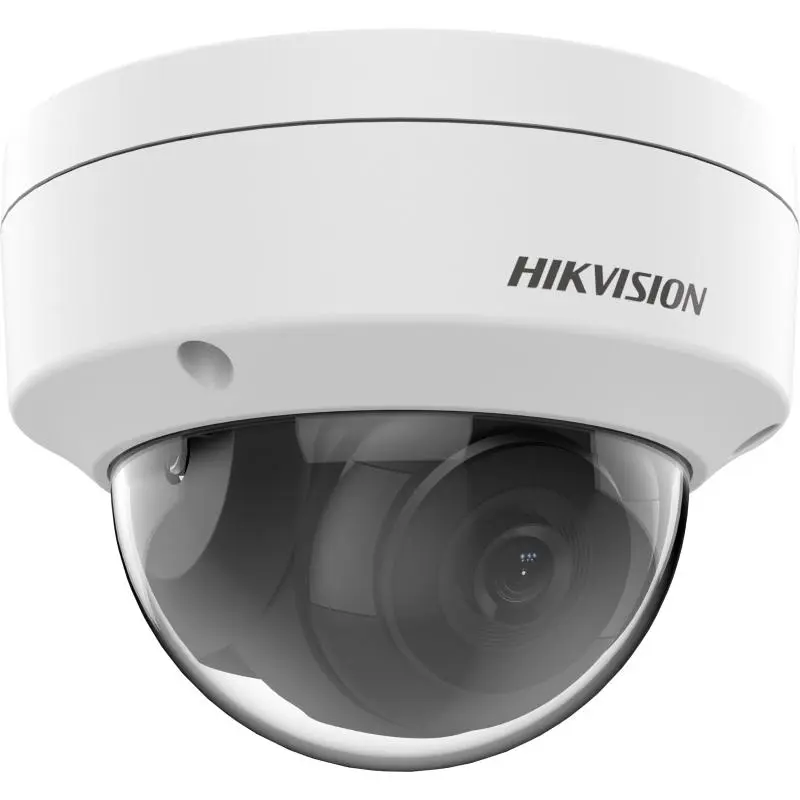

Hikvision 4MP Fixed Dome Network Camera

Model DS-2CD1143G0-I
  1. All Products
  2. All Products
  3. Hikvision 4MP Fixed Dome Network Camera
End User
Product Code: DS-2CD1143G0-I
Hikvision

Hikvision 4MP Fixed Dome Network Camera

Hikvision 4MP Fixed Dome Network Camera (DS-2CD1143G0-I) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/265/image_1920?unique=ab53d55
DS-2CD1143G0-I

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range

This combination does not exist.

  • IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2CD1143G0-I

Technical Specifications

ModelDS-2CD1143G0-I
Camera
Image Sensor1/3" progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens MountM12
FocusFixed
ApertureF2.0
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Iris TypeFixed
Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
IR Wavelength850 nm
Smart Supplement LightYes
Video
Main Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, 3D DNR
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email
General
Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialBase: metal, cover: plastic
DimensionØ111 mm × 82.4 mm (Ø 4.4" × 3.2")
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
General FunctionAnti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
