IP Cameras

Hikvision 6MP AcuSense Vandal Fixed Dome Network Camera

Model DS-2CD2163G2-I
  1. All Products
  2. All Products
  3. Hikvision 6MP AcuSense Vandal Fixed Dome Network Camera
End User
Product Code: DS-2CD2163G2-I
Hikvision

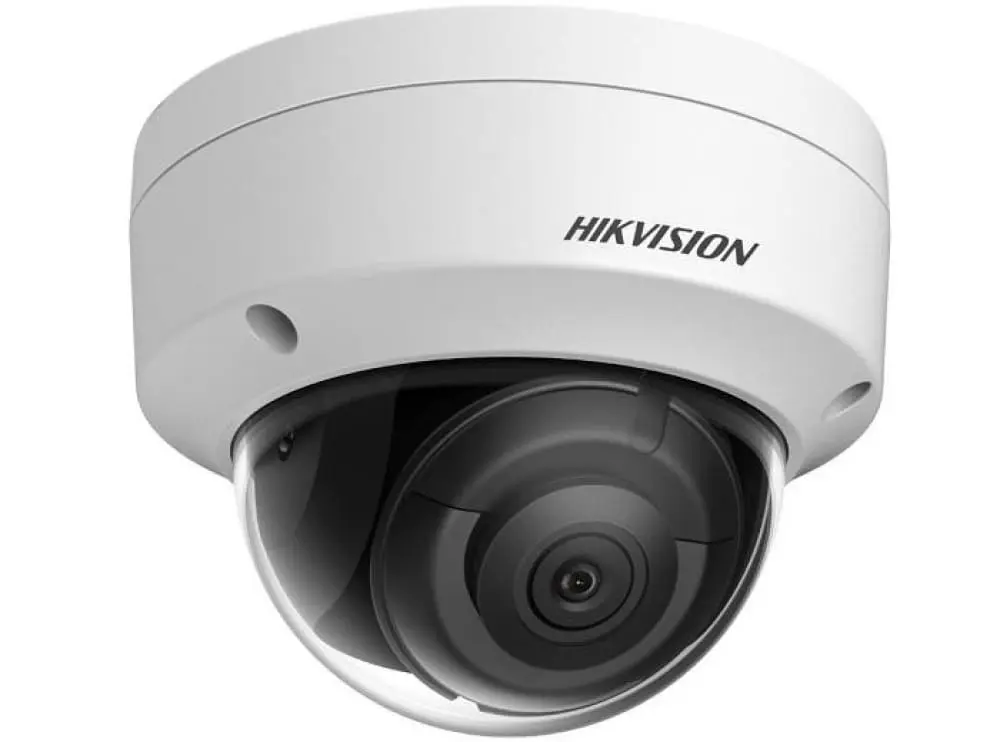

Hikvision 6MP AcuSense Vandal Fixed Dome Network Camera

Hikvision 6MP AcuSense Vandal Fixed Dome Network Camera (DS-2CD2163G2-I) is a IP Camera product. Review its technical specifications and product data to select the right solution from Do Link Egypt.

https://dolinkegypt.com/web/image/product.template/305/image_1920?unique=ab53d55
DS-2CD2163G2-I

  • High quality imaging with 6 MP resolution
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • -S: Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

This combination does not exist.

  • IP Cameras
  • 1-Year Warranty From purchase date
  • Technical Support Before and after sale
  • Fast Delivery All over Egypt
  • Secure Payment Cash on delivery or in branch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

General
Model DS-2CD2163G2-I

Technical Specifications

ModelDS-2CD2163G2-I
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens TypeFixed focal length, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° / 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens MountM12
Iris TypeFixed
ApertureF1.6
DORI
DORI2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m / 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-S: Yes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, con
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 programmable polygon privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio-S: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium / 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound
Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset KeyYes
Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) Face detection
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning (-IS), trigger alarm output (-S model supports)
General
Power12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialAluminum alloy body Bubble: plastic
DimensionØ110.8 mm × 84.7 mm (Ø4.4" × 3.3")
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat, mirror, password reset via email, pixel counter, anti-flicker
